Basic Information:

• Brand: Ricoh
• Model: MH5340
• Type: Oil based ink printhead for UV printer use
• Four Channel ( one printhead Maximum can inkjet 4 colors)
• Original or Not: Original
• Place of Origin: Japan
• New or Used: Brand New
• Warranty Policy: No Warranty

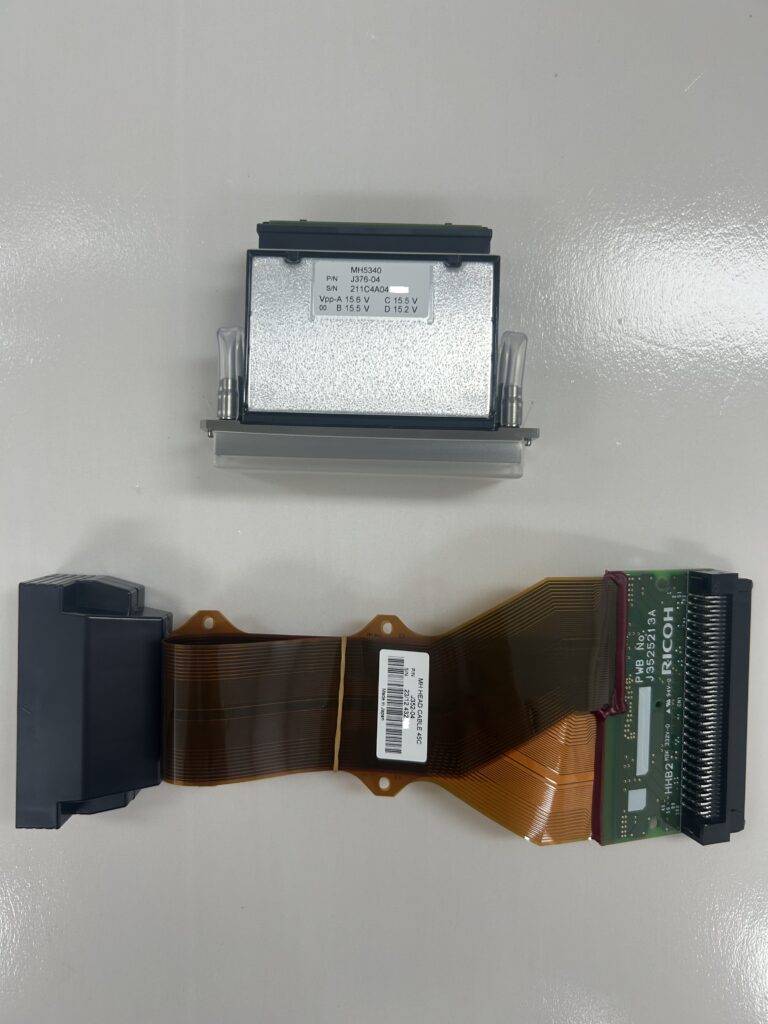

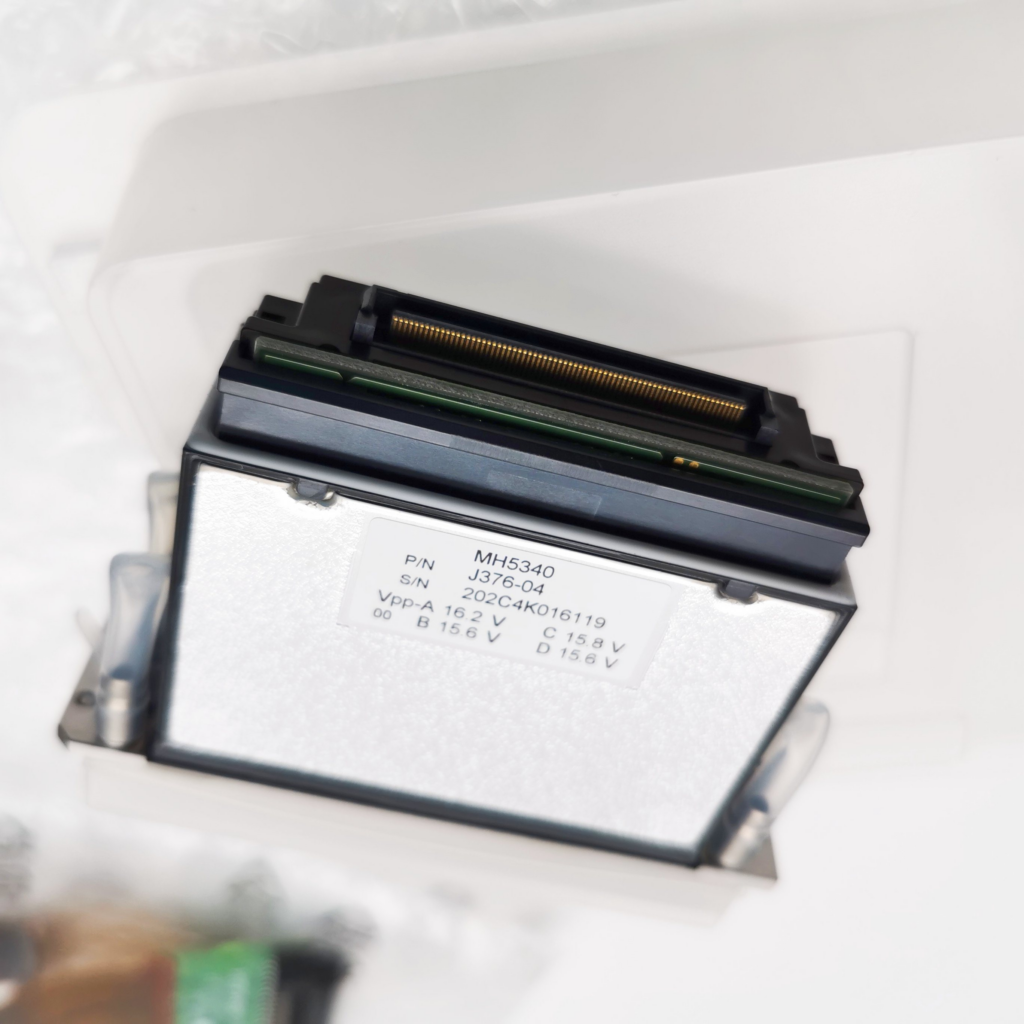

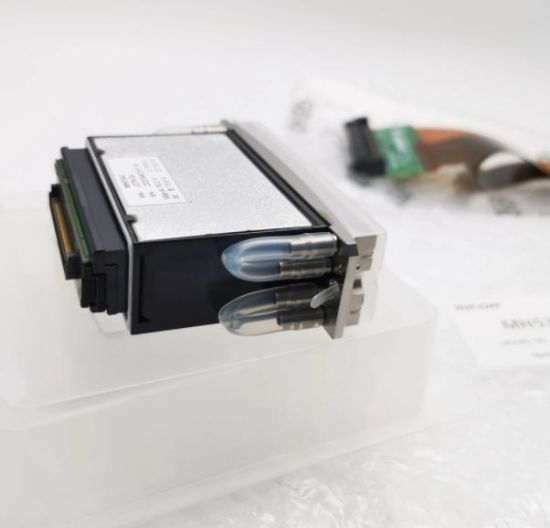

Ricoh Gen6 Printhead MH5340 Description:

Launched as a higher-specification model of the RICOH MH5420/5440 and RICOH MH5421/5441, the Ricoh Gen6 Printhead’s minimized 5pl drop size and improved jetting accuracy produce excellent print quality without graininess. In addition, the maximum frequency of grayscale is 50kHz, which improves productivity.

Ricoh Gen6 features enhanced bonding technology for improved durability. With these new features, the RICOH MH5320/5340/5320 Type A further enhances its compatibility with UV, solvent, and water-based inks. Specifically, MH5320’s water-based ink compatibility and service life are more than twice that of the previous MH5421.

Ricoh Gen6 Printhead MH5340 Specifications

Method	Piston pusher with metallic diaphragm plate
Number of nozzles	1,280 (4 × 320 channels), staggered
Nozzle spacing (4 color printing)	1/150″(0.1693 mm)
Nozzle spacing (Row to row distance)	A: 1.101mm B: 11.811mm
Max. number of color inks	4 colors
Drop volume	Binary mode : 5pl / Grey-scale mode : 5-15pl
Jetting frequency	50kHz (3 levels); 40kHz (4 levels)
Compatible ink	UV, Solvent, Aqueous, Others.
