Basic Information:
- Brand: Mimaki
- Model: MP-M022625
- Original or Not: Original
- New or Used: Brand New
- Warranty Policy: No Warranty
- Dimensions: 89 x 25 x 69 mm (excluding cables)

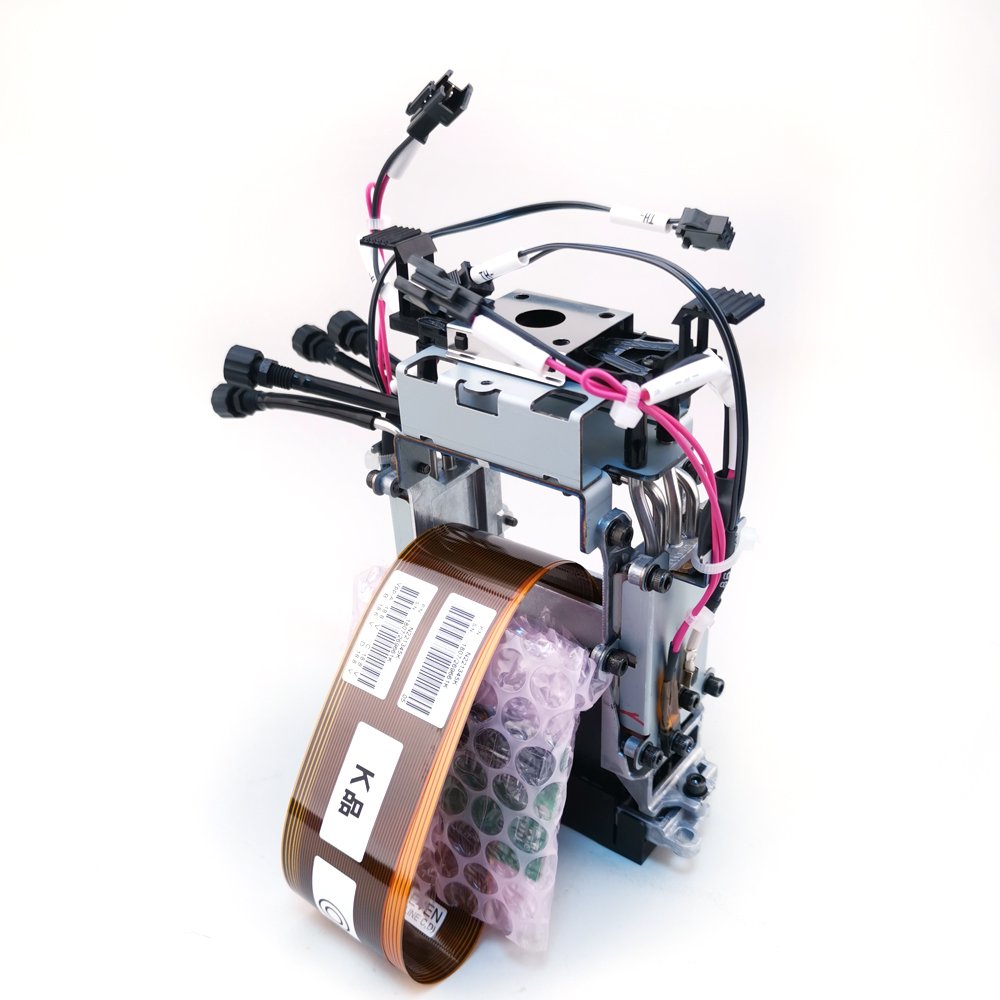

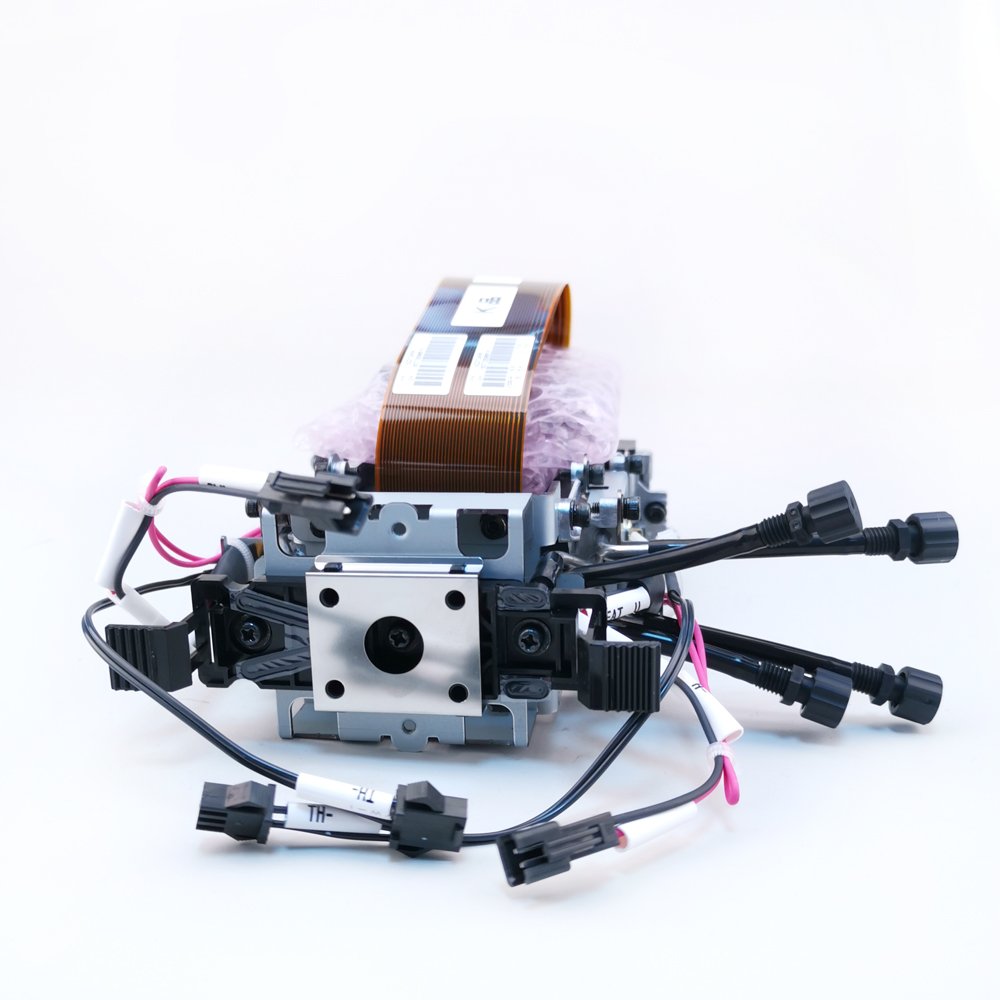

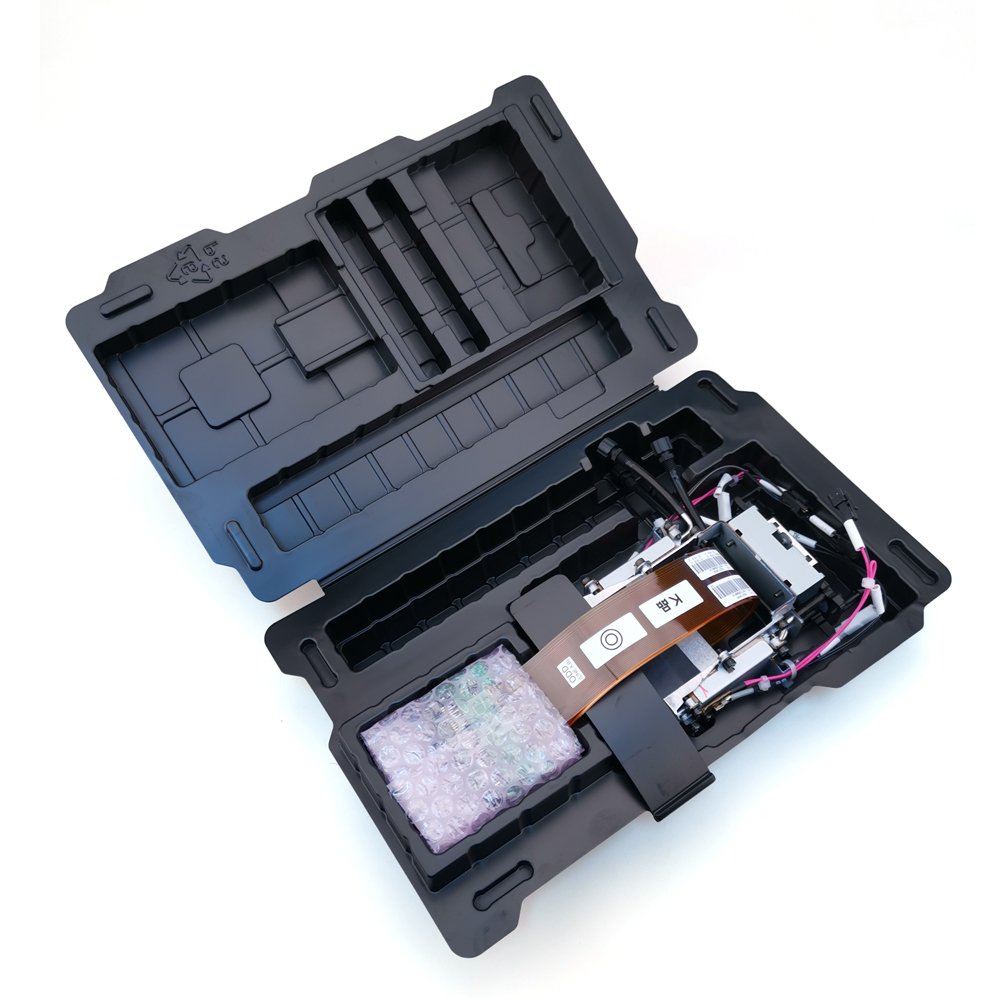

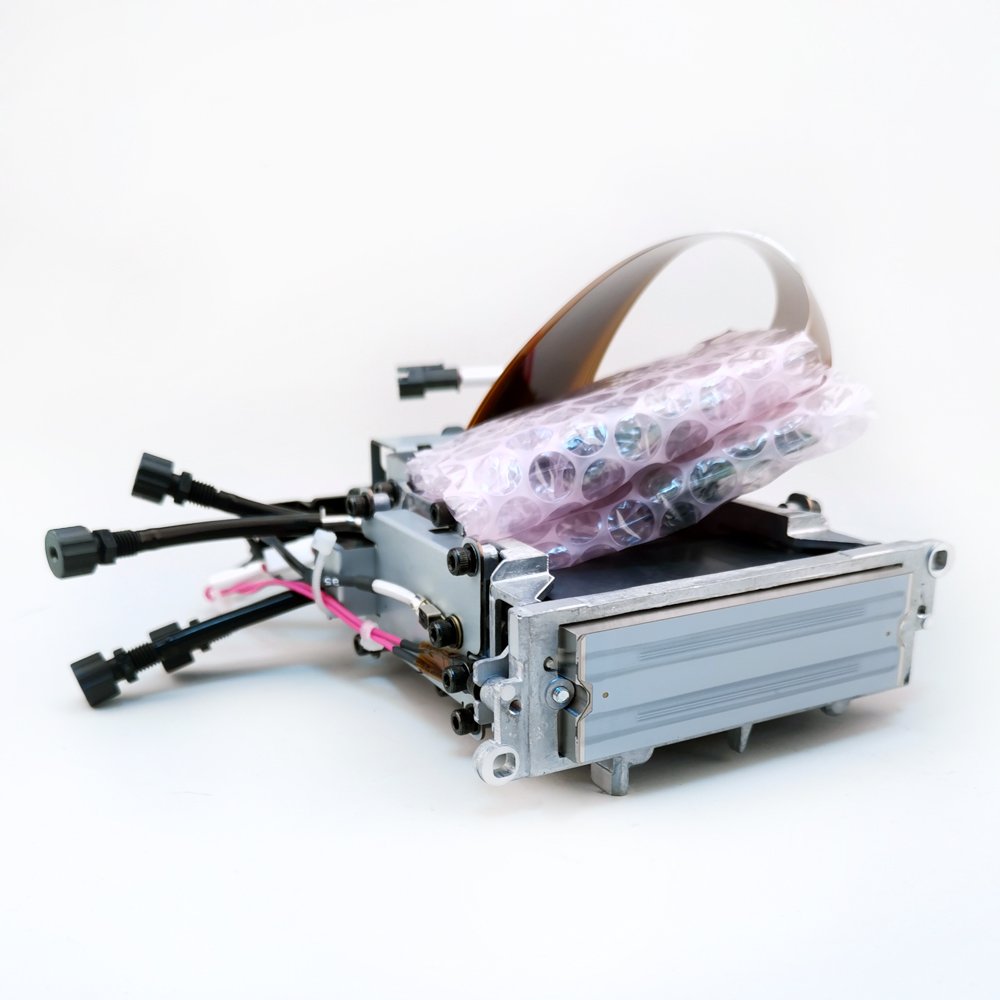

Mimaki JFX200-2513 (M022625) Print head Description
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four-color support, 8 levels of grayscale, and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).
Mimaki JFX200-2513 (Model: M022625) Printhead Specifications
| Head materials | SST, Nickel alloy and Epoxy Adhesive |
| Nozzle plate surface | Coated SST |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 – 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHz |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Life | 100 billion actuations per nozzle |
| Dimensions | 89 x 25 x 69 mm (excluding cables) |
