Basic Information:
- Brand: Mimaki
- Model: MP-M022626
- Original or Not: Original
- New or Used: Brand New
- Warranty Policy: No Warranty
- Dimensions: 89 x 25 x 69 mm (excluding cables)

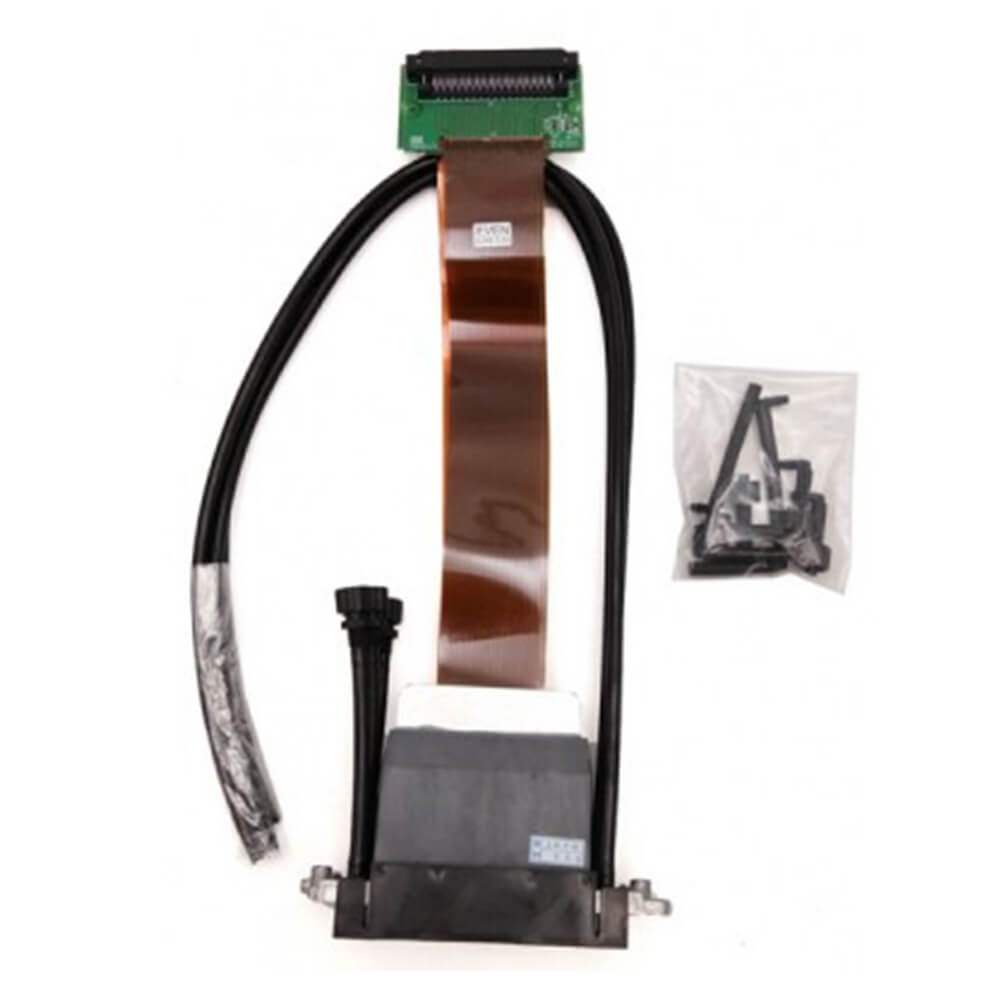

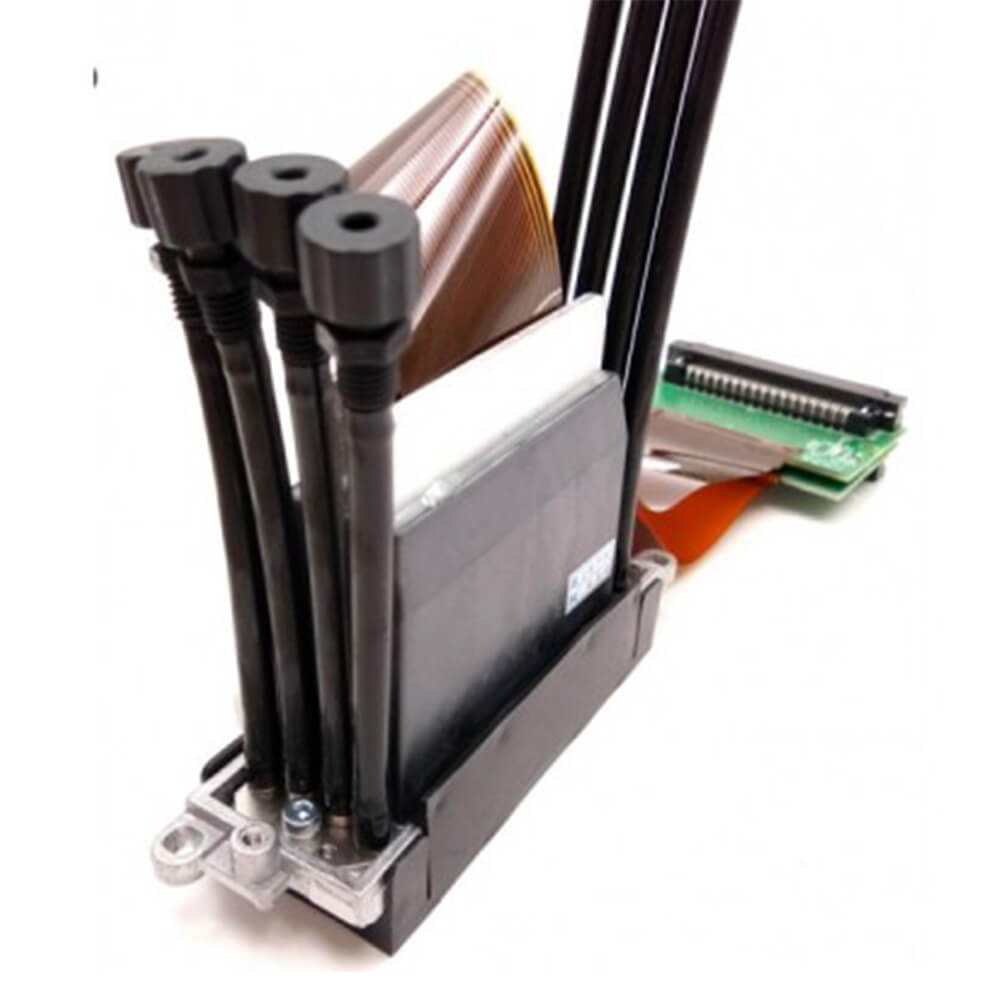

Mimaki JFX500 Gen5 Printhead Assy – M022626 Description
This printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density.
Mimaki JFX500 Gen5 Printhead Assy – M022626 Specifications
| Head materials | SST, Nickel alloy and Epoxy Adhesive |
| Nozzle plate surface | Coated SST |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 – 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHZ |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Life | 100 billion actuations per nozzle |
| Dimensions | 89 x 25 x 69 mm (excluding cables) |
Printer Compatibility:
Mimaki JFX500-2131
Fujifilm Acuity LED 3200R
Mimaki UJV500-160
Mimaki UJV55-320
