Basic Information:
- Brand: Mimaki
- Model: MP-M026887
- Original or Not: Original
- New or Used: Brand New
- Warranty Policy: No Warranty
- Dimensions: 89 x 25 x 69 mm (excluding cables)

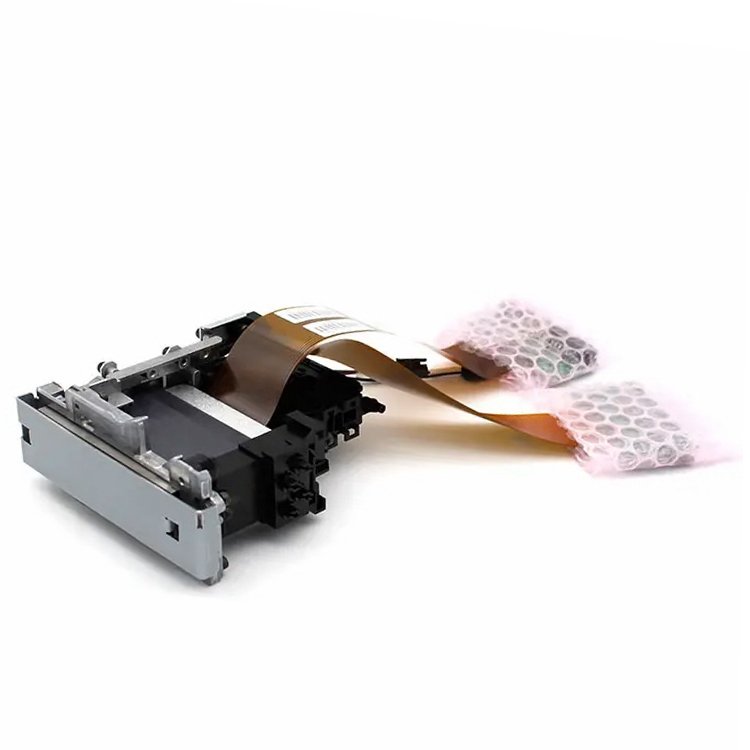

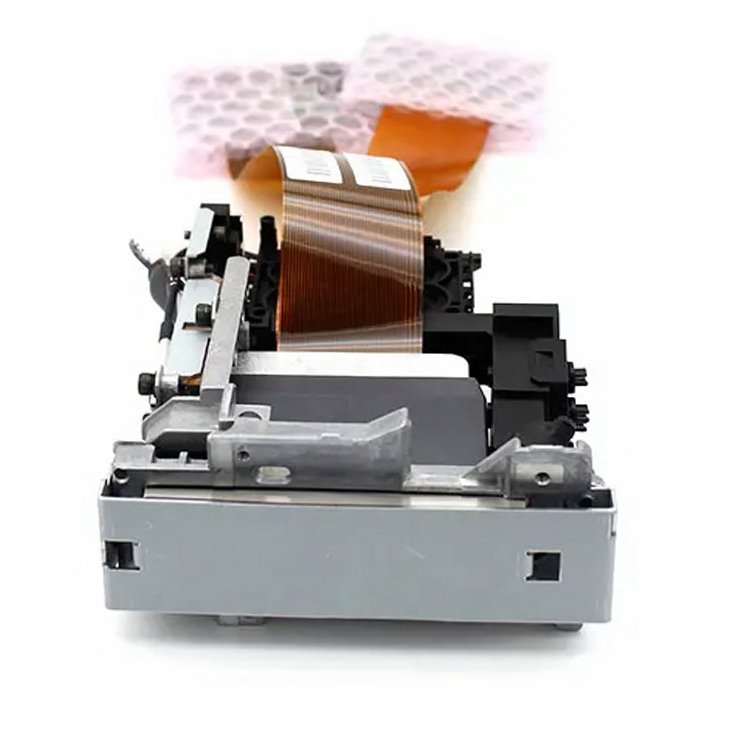

Mimaki UCJV150/UCJV300 Printhead M026887 Description
This is an Original and new Mimaki Gen5 Printhead (Ricoh GEN5 Maintenance Head U Assy) is suitable for Mimaki UCJV300 , Mimaki UCJV150 printers.
Note: This is the original Mimaki part (Model Number: MP-M026887).
Mimaki UCJV150/UCJV300 Printhead M026887 Specifications
| Head materials | SST, Nickel alloy and Epoxy Adhesive |
| Nozzle plate surface | Coated SST |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 – 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHz |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Life | 100 billion actuations per nozzle |
Printer Compatibility:
Mimaki CJV300-160
Mimaki JFX200 EX
MimakiJFX200-2513 EX
Mimaki UCJV150-160
Mimaki UCJV300-107
Mimaki UCJV300-130
Mimaki UCJV300-160
Mimaki UCJV300-75
