Basic Information:
- Brand: Mutoh
- Original or Not: Original
- New or Used: Brand New
- Warranty Policy: No Warranty
- Product Name: DF-49684 DX5 printhead
- Type: PrecisionCore MicroTFP printhead
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight: 82 g

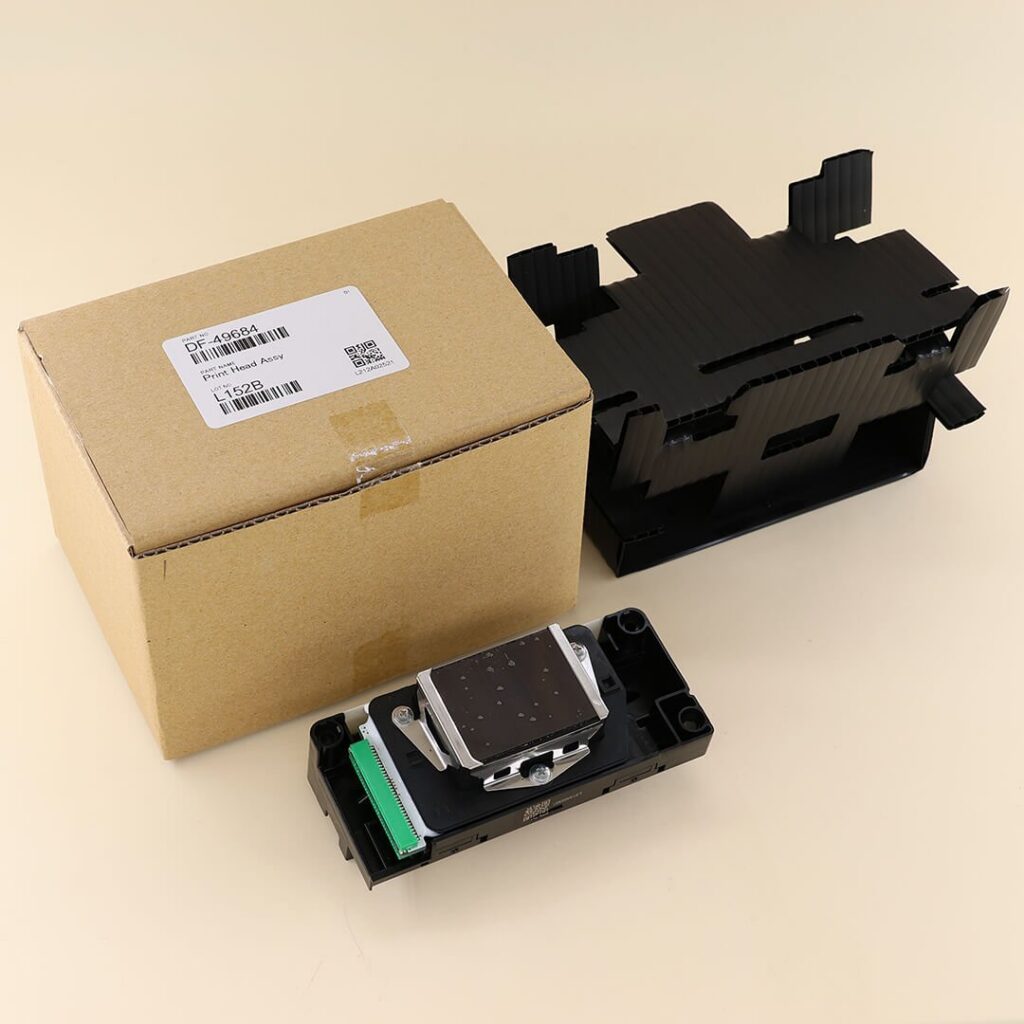

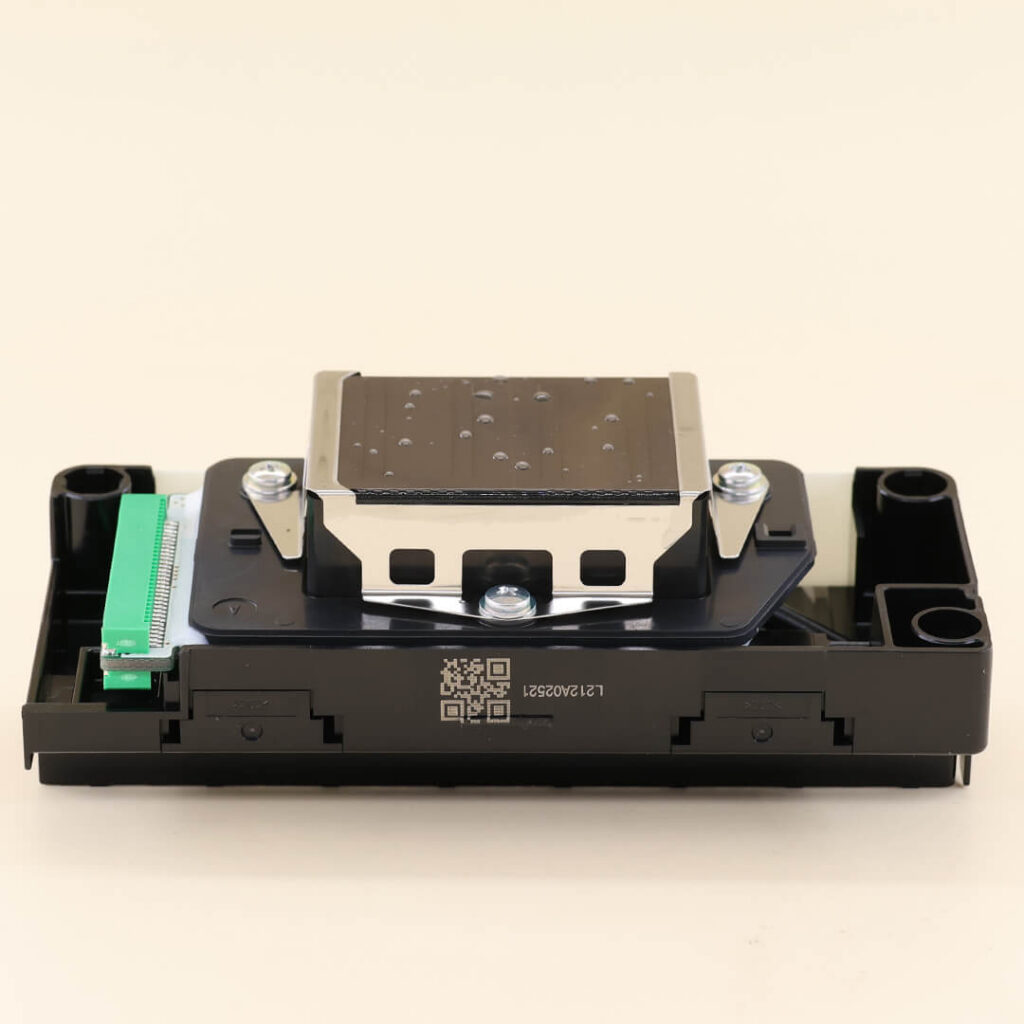

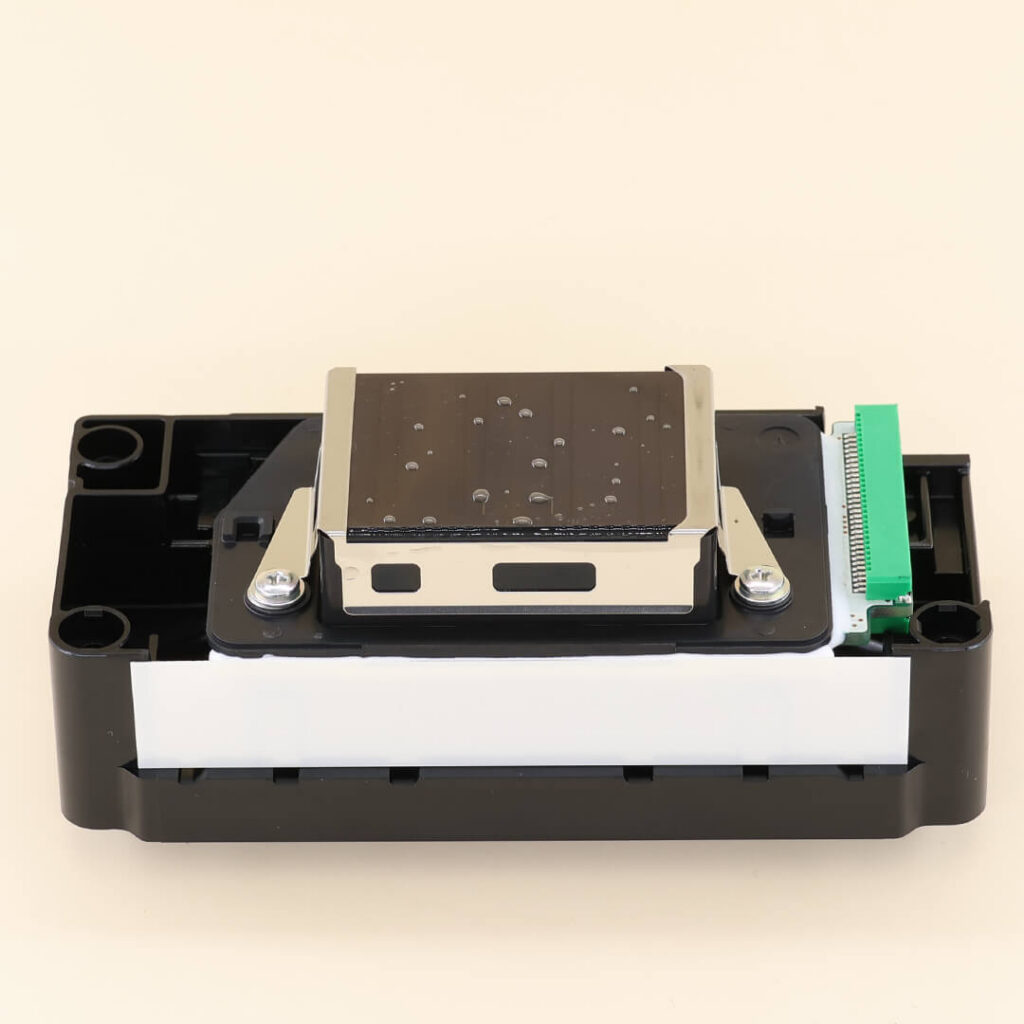

Mutoh DX5 Printhead for VJ1604/1204 Printers (DF-49684) Description:
The Mutoh DX5 Printhead (DF-49684) is an original solvent-based printhead designed for Mutoh ValueJet VJ-1604 and VJ-1204 printers. Engineered for precision and reliability, it ensures vibrant, high-resolution output across a range of eco-solvent and mild solvent inks.
This printhead features 8 independent ink channels, each with 180 nozzles, delivering a native resolution of 1440 dpi. It supports 4-color configurations (two channels per color) and offers variable droplet control from 1.5 to 21 picoliters, providing excellent gradation and image smoothness. With a firing frequency of 8 kHz, it maintains fast and stable performance for production-level printing.
The DF-49684 model comes with a green connector and replaces the discontinued DF-49029 (black connector) version. It is fully compatible with Mutoh DrafStation and ValueJet series printers, ensuring consistent output and long-term reliability.
Mutoh DX5 Printhead for VJ1604/1204 Printers (DF-49684) Specifications
| Model | DF-49684 |
| Technology | Micro-Piezo |
| Native resolution | 1440 dpi |
| Tot. Amount of Nozzles | 1440 (8 lines x 180 nozzles) |
| Min. Droplet Size | 1.5 picoliter |
| Max. Droplet Size | 21 picoliter |
| Firing Frequency | 8 kHz |
| Ink Compatibility | Eco-solvent and mild solvent |
Printer Compatibility:
A-Tex Ultrajet S1500E
A-Tex Ultrajet S1625E
Mutoh RJ-900C (Drafstation)
Mutoh RJ-900X (Drafstation)
Mutoh RJ-901C (Drafstation Pro)
Mutoh RJ-901M (Drafstation Pro)
Mutoh RJ-901X (Drafstation Pro)
Mutoh Valuejet 1204
Mutoh Valuejet 1304
Mutoh Valuejet 1304W
Mutoh Valuejet 1604
Mutoh Valuejet 1604W
Mutoh Valuejet 1604X
Mutoh Valuejet 1614
Xerox 7142
