Basic Information:
- Brand: Kyocera
- Ink Type: Aqueous Ink
- Dimensions: 200 × 25 × 59.3mm
- Dry Weight: 420g
- Original or Not: Original
- New or Used: Brand New
- Warranty Policy: No Warranty
- Country of origin: Japan

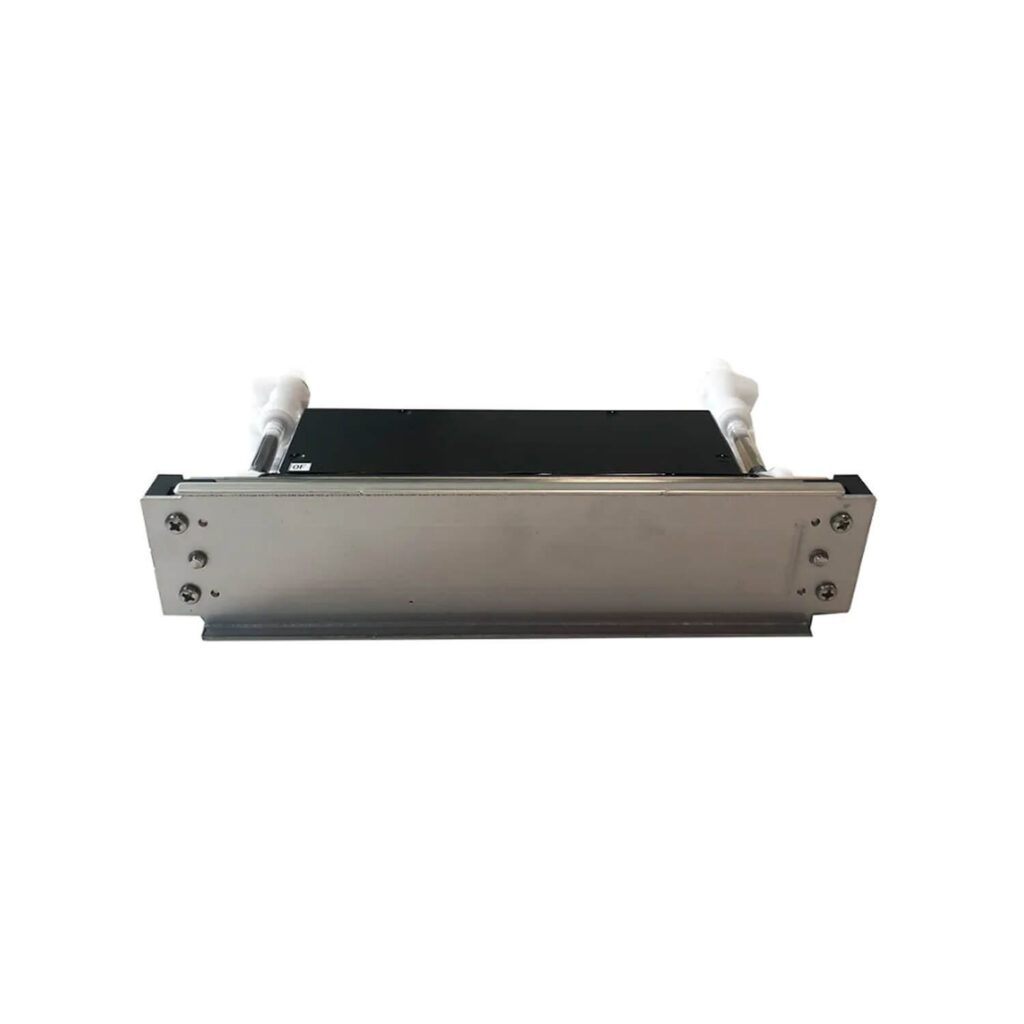

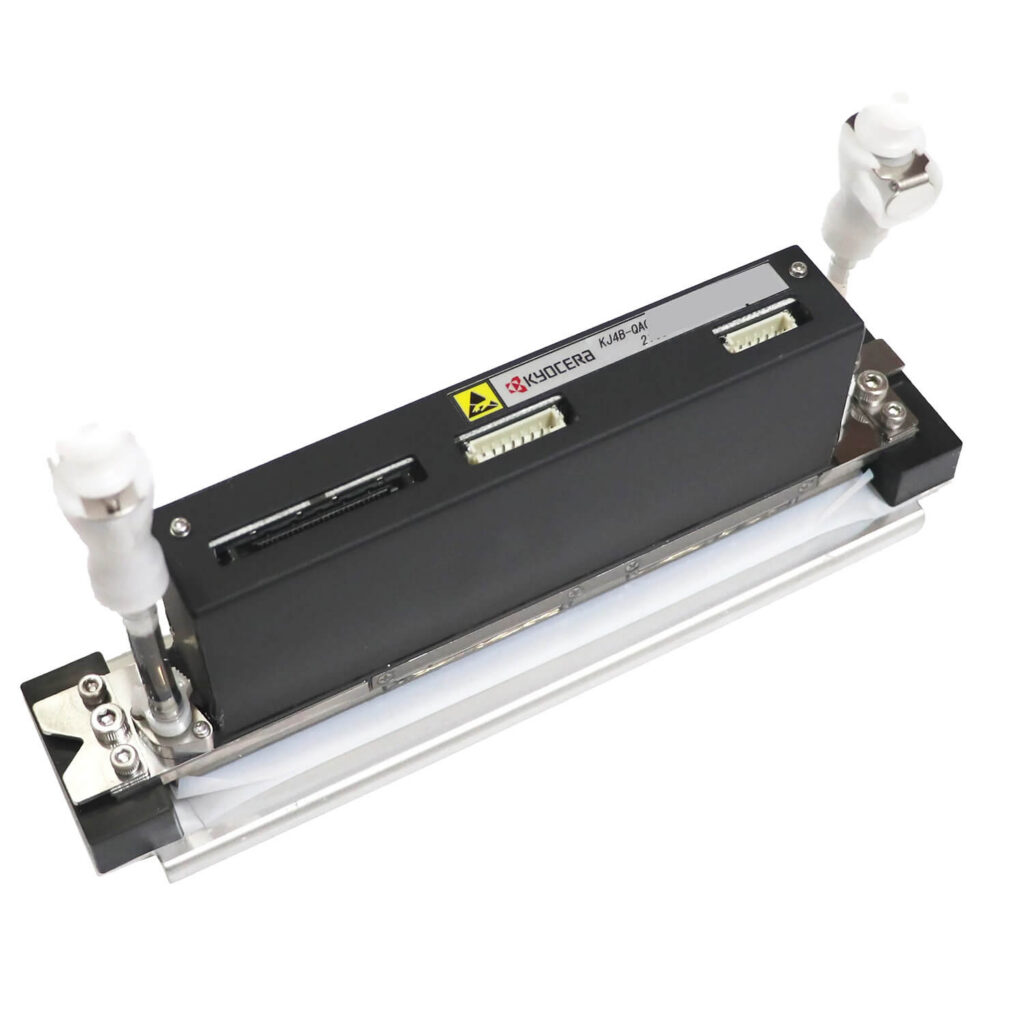

Kyocera KJ4B-QA Print head( KJ4B-QA06NTB) Description
The latest Kyocera KJ4B-QA model is specifically designed for high-speed printing with water-based inks. This 600 dpi one-color printhead features a maximum drive frequency of 30 kHz. It achieves high-quality output with a small drop volume of 5pl at a speed of 75 m/min, utilizing 2,656 nozzles arranged across a 108.25 mm wide print swathe with a 0.042 mm pitch, resulting in 30,000 drops per second.
The Kyocera KJ4B-QA printhead is equipped with internal filters to eliminate foreign particles in the ink and an internal heater to mitigate the effects of external temperatures. Its unique ink channel design ensures a stable ink supply, enhancing print reliability and quality.
The Kyocera KJ4B series is engineered for high-speed printing with water-based ink, offering exceptional productivity for both single-pass applications like transaction, document, and security printing with MICR ink, and multi-pass applications, including textile printing.
Kyocera KJ4B-QA06NTB Printhead Specifications
| Number of Nozzles | 2656 (2558) | |
| Effective Print Width (mm) | 108.25 | |
| Ink | AQ | |
| Maximum Drive Frequency (kHz) | 30 | |
| Resolution (dpi) | 600 dpi * 600 dpi | |
| Print Speed *1 (m/min) | 76.2 | |
| Print Speed*1 (pl) | Minimum | 5 |
| Maximum | 12 | |
| Nozzle Recirculation | No | |
| Width*Length*Height (mm) | 200*25*57.9 | |
| Recommended Ink Viscosity*2 (mPa * s) | 5.0~6.0 | |
Kyocera KJ4B Print head Applications
Kyocera KJ4B-QA Printhead Models:
| KJ4B-QA | KJ4B-QA06NTB-MS6V-4B |
| KJ4B-QA06NSB-OP1F-4B | |
| KJ4B-QA06NTB-HZ5V-4A | |
| KJ4B-QA06NTB-MS10V-4B | |
| KJ4B-QA06NTB-HZ9V-4B | |
| KJ4B-QA06NTB-STDC-4B | |
| KJ4B-QA06NTC-RM6A-4B | |
| KJ4B-QA06NTB-ST6V-4B | |
| KJ4B-QA06NTB-HG10V-4B | |
| KJ4B-QA06NTB-HT10V | |
| KJ4B-QA06NTB-ME6V-4B | |
| KJ4B-QA06NTB-AN6V-4B | |
| KJ4B-QA06NTB-TX10V-4B |
Printer Compatibility：
EFI Reggiani ReNOIR;
TOPMS Italy JP6;
Xerox Rialto 900
