Suitable For： Water based ink printer use
Basic Information:
- Brand: Kyocera
- Model: KJ4B-0300-RO6DS-STD1
- Ink Type: AQ ink
- Dimensions: 200 × 36 × 68.5mm
- Original or Not: Original
- New or Used: Brand New
- Warranty Policy: No Warranty
- Country of origin: Japan
1. Double channel into different colors of ink can achieve a double color, 4 color printing only need 2 nozzles, the number of nozzles in half, is your pursuit of cost-effective ideal choice.
2. Reduced packaging materials, more suitable for industrial printers in harsh environments.

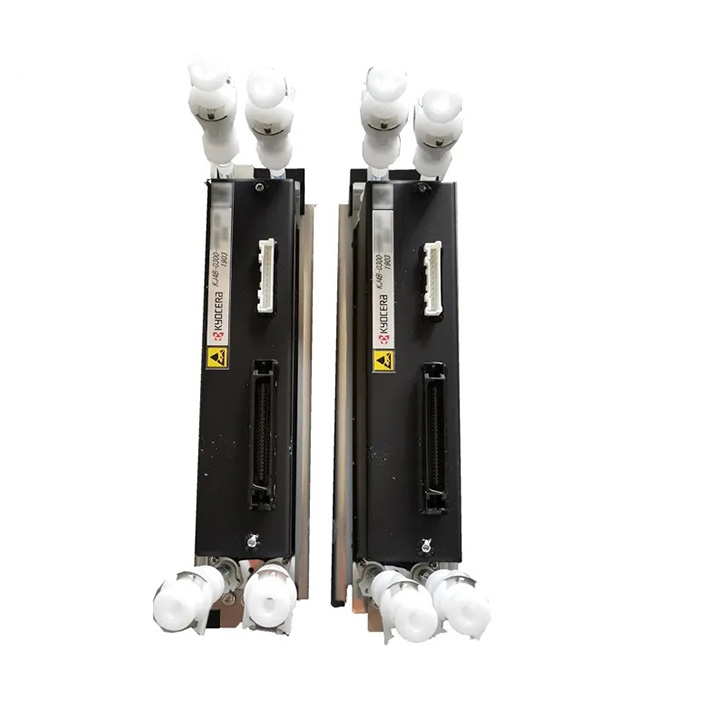

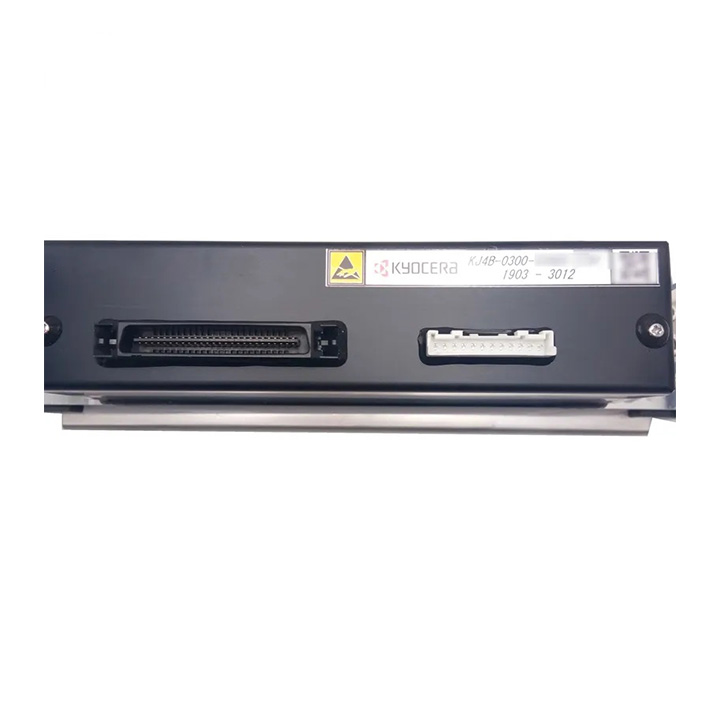

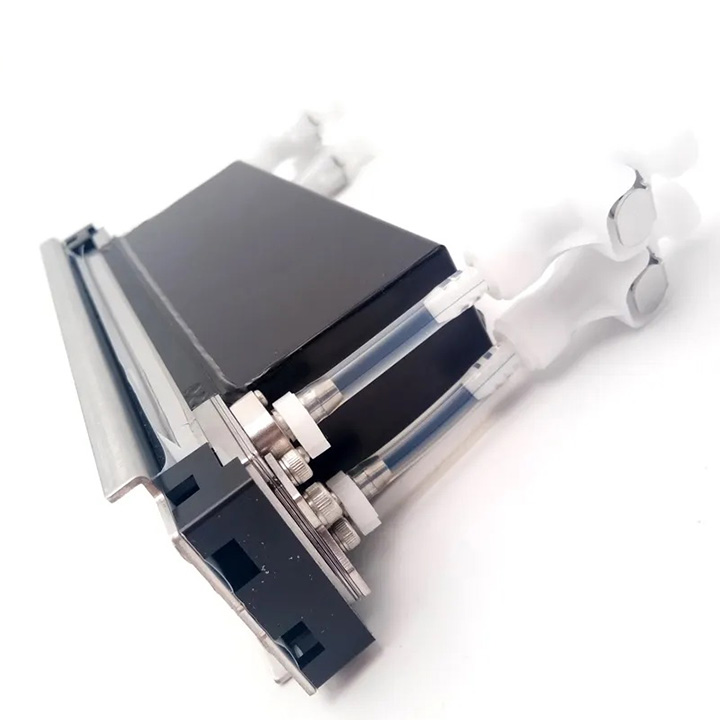

Kyocera KJ4B-0300 Printhead Description:
This 600 dpi printhead features a maximum drive frequency of 30 kHz, achieving high-quality printing with a small drop volume of 5 pl at 75 m/min. The printhead has 2,656 built-in nozzles that are arranged across a 112.35 mm wide print swathe. Its unique ink channel design provides a stable ink supply.
The printhead has 2,656 built-in nozzles and can eject about 150 million dots per second. To increase the speed, the printhead mainly adopts measures such as increasing the driving frequency, improving the nozzle shape, and adjusting the waterproof film material.
Kyocera KJ4B-0300 Printhead Specifications:
| Number of Nozzles | 2656 (2558) | |
| Effective Print Width (mm) | 112.35 | |
| Ink | AQ | |
| Maximum Drive Frequency (kHz) | 30 | |
| Resolution (dpi) | 300 dpi * 600 dpi | |
| Print Speed *1 (m/min) | 76.2 | |
| Print Speed*1 (pl) | Minimum | 5 |
| Maximum | 12 | |
| Nozzle Recirculation | No | |
| Width*Length*Height (mm) | 200*36*68.5 | |
| Recommended Ink Viscosity*2 (mPa * s) | 6.0~7.0 | |
Kyocera KJ4B-0300 Printhead Applications:

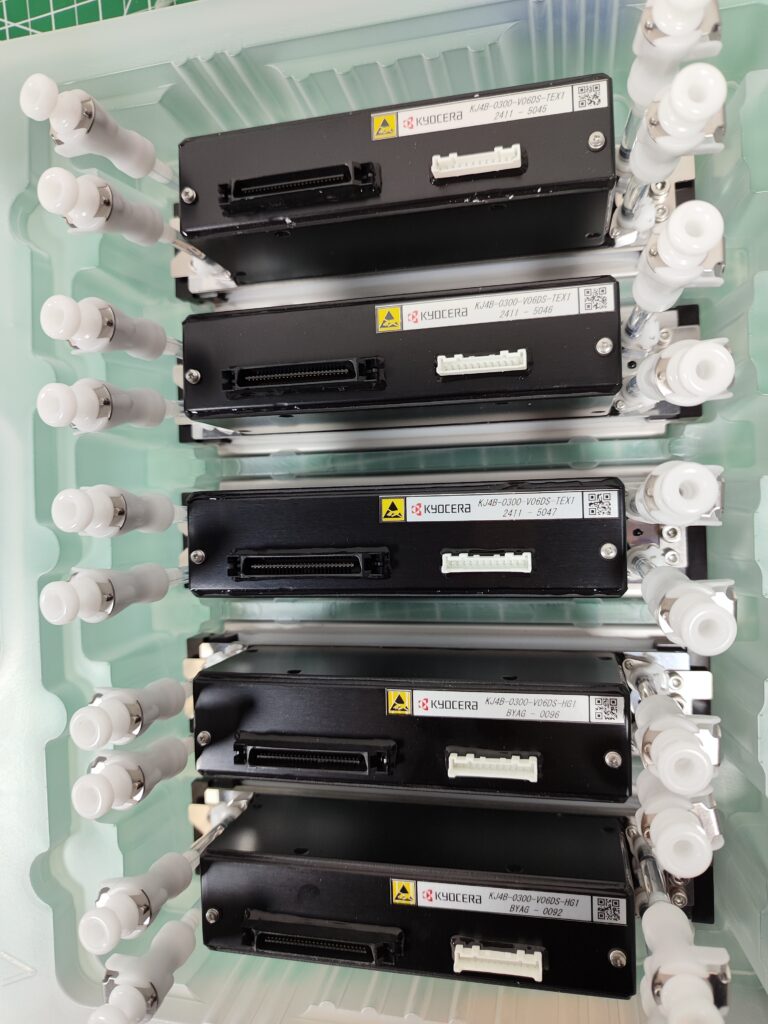

Kyocera KJ4B-0300 Printhead Models:
| KJ4B-0300 | KJ4B-0300-RO6DS-TEX2 |
| KJ4B-0300-RO6DS-STD1 | |
| KJ4B-0300-RO6DS-HG2 | |
| KJ4B-0300-RO6DS-HTC1 | |
| KJ4B-0300-R06DS-MSS1 | |
| KJ4B-0300-GO6DS-MSS1 | |
| KJ4B-0300-GO6DS-MSS1 | |
| KJ4B-0300-GO6DS-AMS1 | |
| KJ4B-0300-GO6DS-AMS1 | |
| KJ4B-0300-GO6DS-NKS1 | |
| KJ4B-0300-V06DS-DG11 | |
| KJ4B-0300-V06DS-HG1 | |
| KJ4B-0300-V06DS-TEX1 | |
| KJ4B-0300-K06DS-HTP2 | |
| KJ4B-0300-F06DS-MSS1 |
