Suitable For： UV based ink printer use

Basic Information：
Brand: Kyocera
Model: KJ4A-0300-Q06DS-WIT1
Ink Type: UV ink
Dimensions: 200 × 36 × 68.8mm
Original or Not: Original
New or Used: Brand New
Warranty Policy: No Warranty
Country of origin: Japan

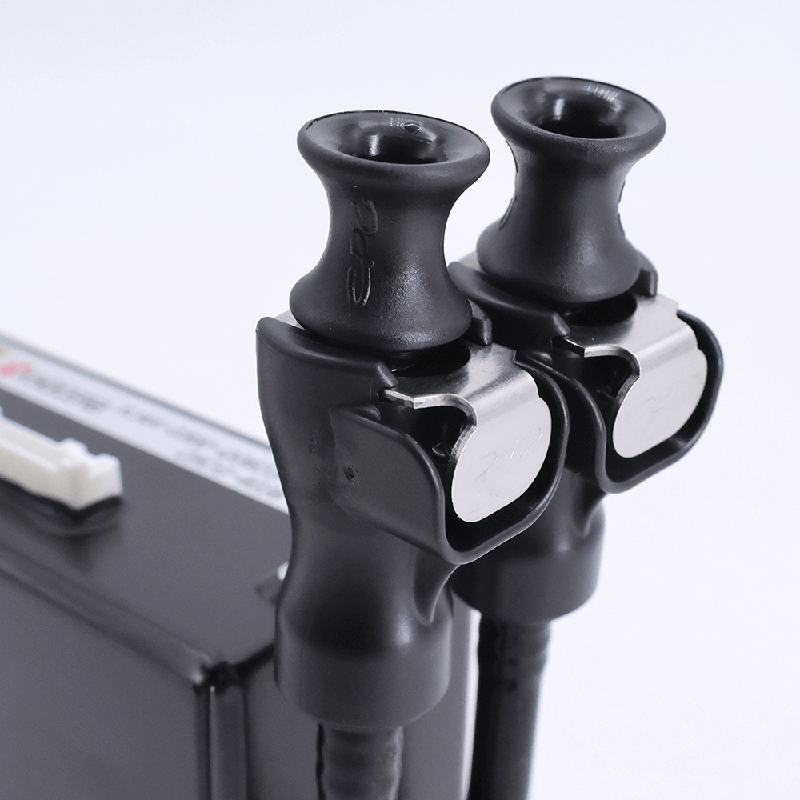

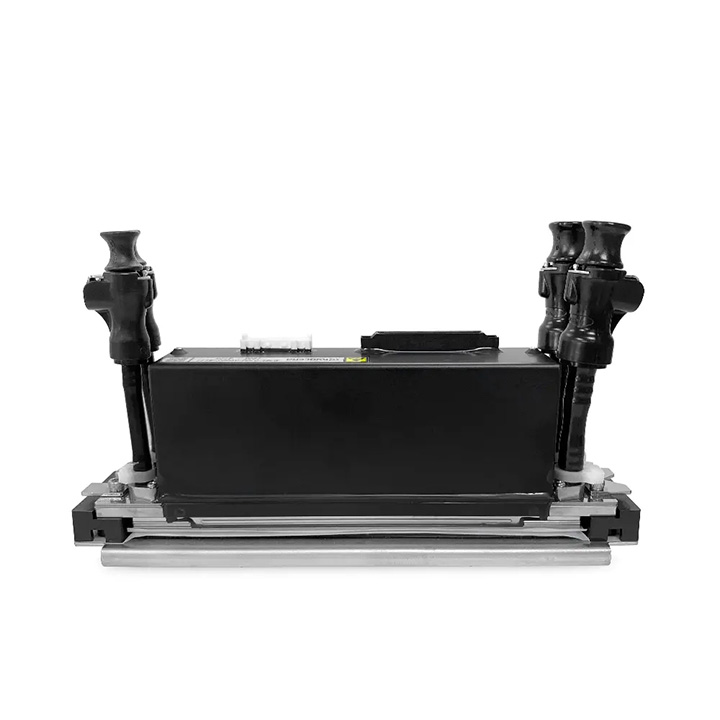

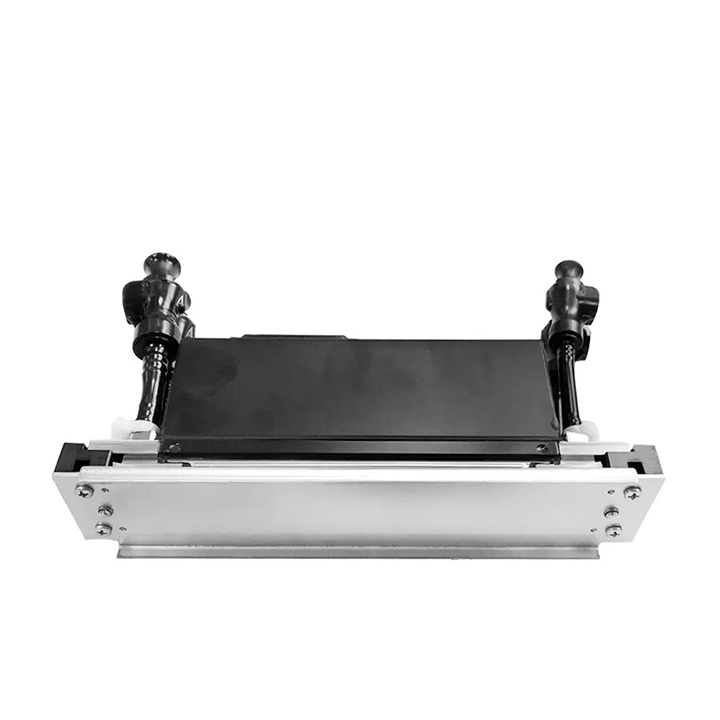

Kyocera KJ4A-0300 Printhead Description

The Kyocera KJ4A-0300-Q06DS-WIT1 printhead is an industrial-grade inkjet head built for high speed single-pass printing with aqueous inks and multi pass systems using UV inks. Engineered for precision and speed, it features a native resolution of 300 dpi and supports two-color printing for versatile production environments.

With 2,656 nozzles aligned across a 112.35 mm print width, this printhead achieves a 4 picoliter droplet size and operates at a maximum drive frequency of 30 kHz, enabling printing speeds up to 158 m/min while maintaining sharp, consistent image quality.

Designed for industrial printers requiring high throughput and reliability, Kyocera KJ4A-0300 printhead is ideal for packaging, signage, textiles, and other single-pass or multi-pass inkjet systems that utilize water-based or UV-curable inks.

Kyocera KJ4A-0300 Printhead Specifications

Number of Nozzles		2656 (2558)
Effective Print Width (mm)		112.35
Ink		UV
Maximum Drive Frequency (kHz)		30
Resolution (dpi)		600 dpi * 600 dpi
Print Speed *1 (m/min)		76.2
Print Speed*1 (pl)	Minimum	4
	Maximum	14
Nozzle Recirculation		No
Width*Length*Height (mm)		200*36*68.8
Recommended Ink Viscosity*2 (mPa * s)		6.0~7.0

Kyocera KJ4A-0300 Printhead Models:

KJ4A-0300	KJ4A-0300-Q06DS-WIT1
	KJ4A-0300-K06DS-HTP1
	KJ4A-0300-Q06DS-DOC2
	KJ4A-0300-K06DS-STD1
	KJ4A-0300-Q06DS-HG2

Compatible Models：

CET Color K-50OHS
Docan FR3210T
Docan H3000
Handtop HT2500UV HR8
Handtop HT3200
Handtop HT3200UV
Imprimo Titanium UV Flatbed
Polaroid T-REX
Vanguard VK300D-HS
