Basic Information:

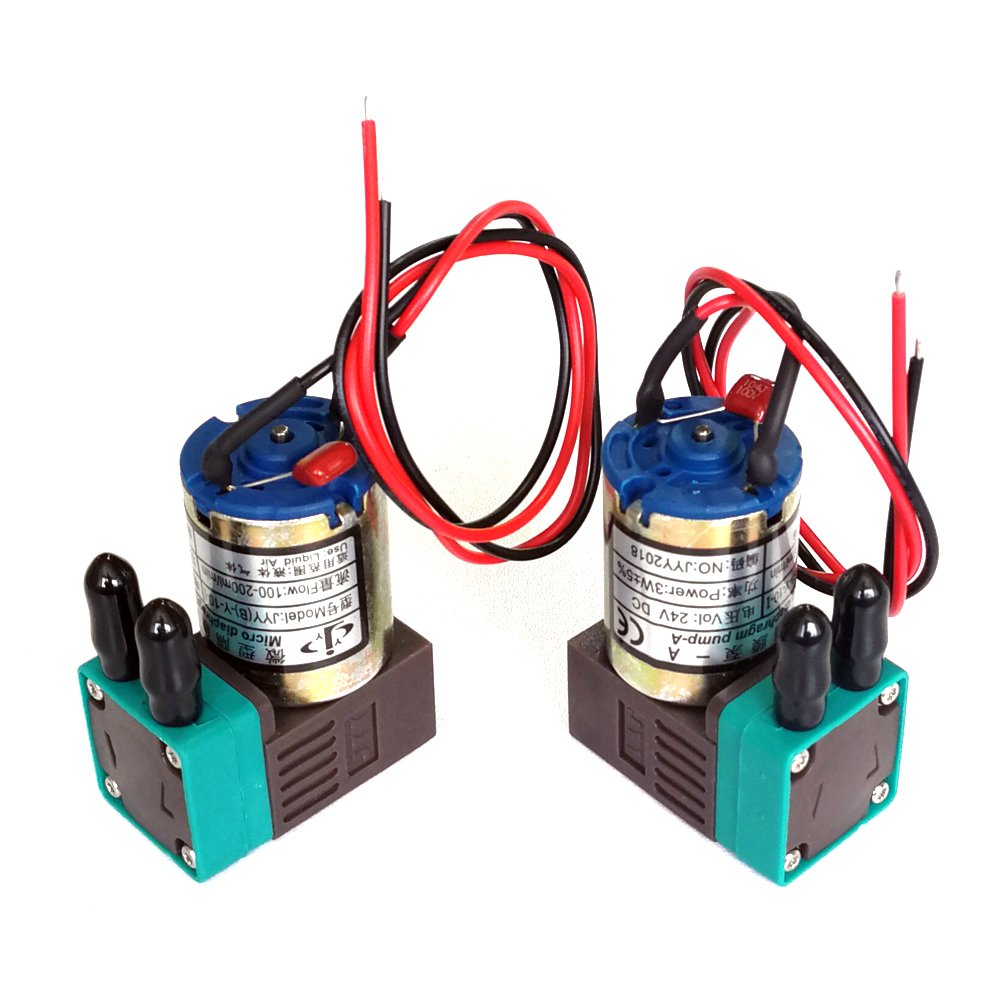

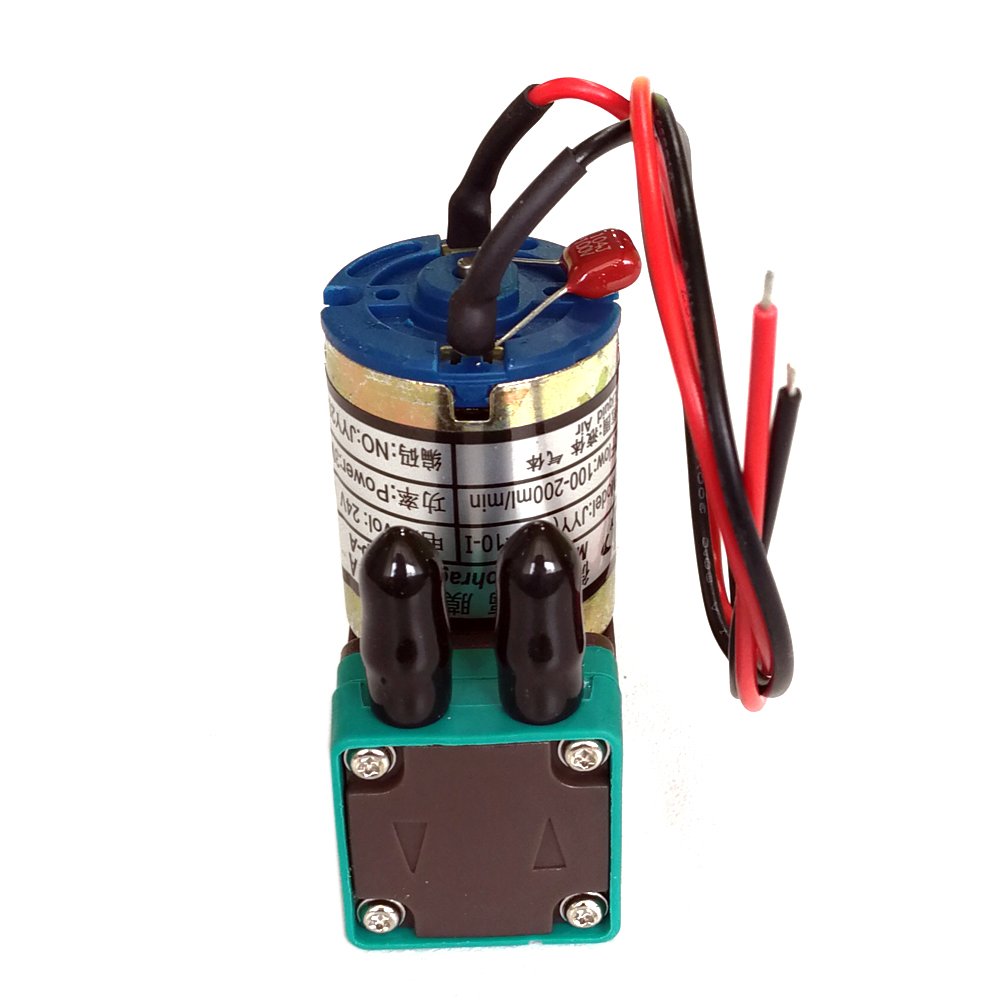

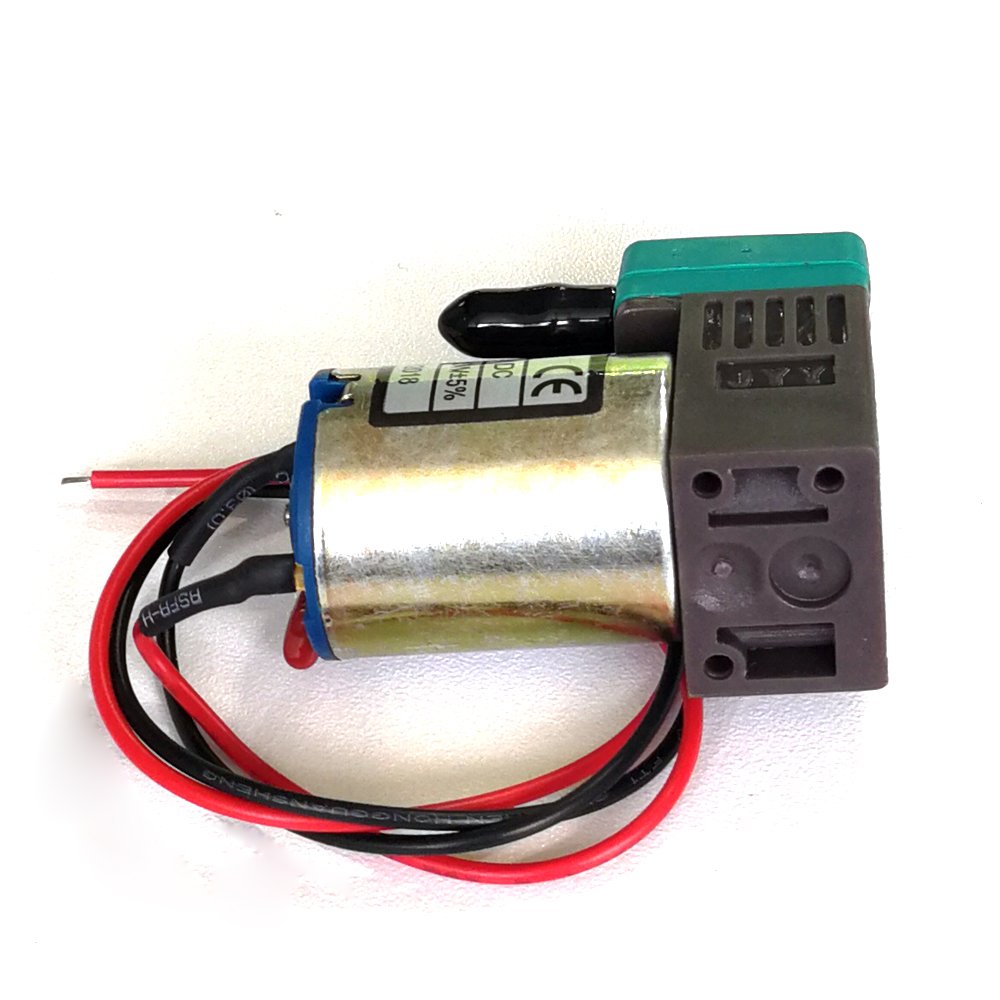

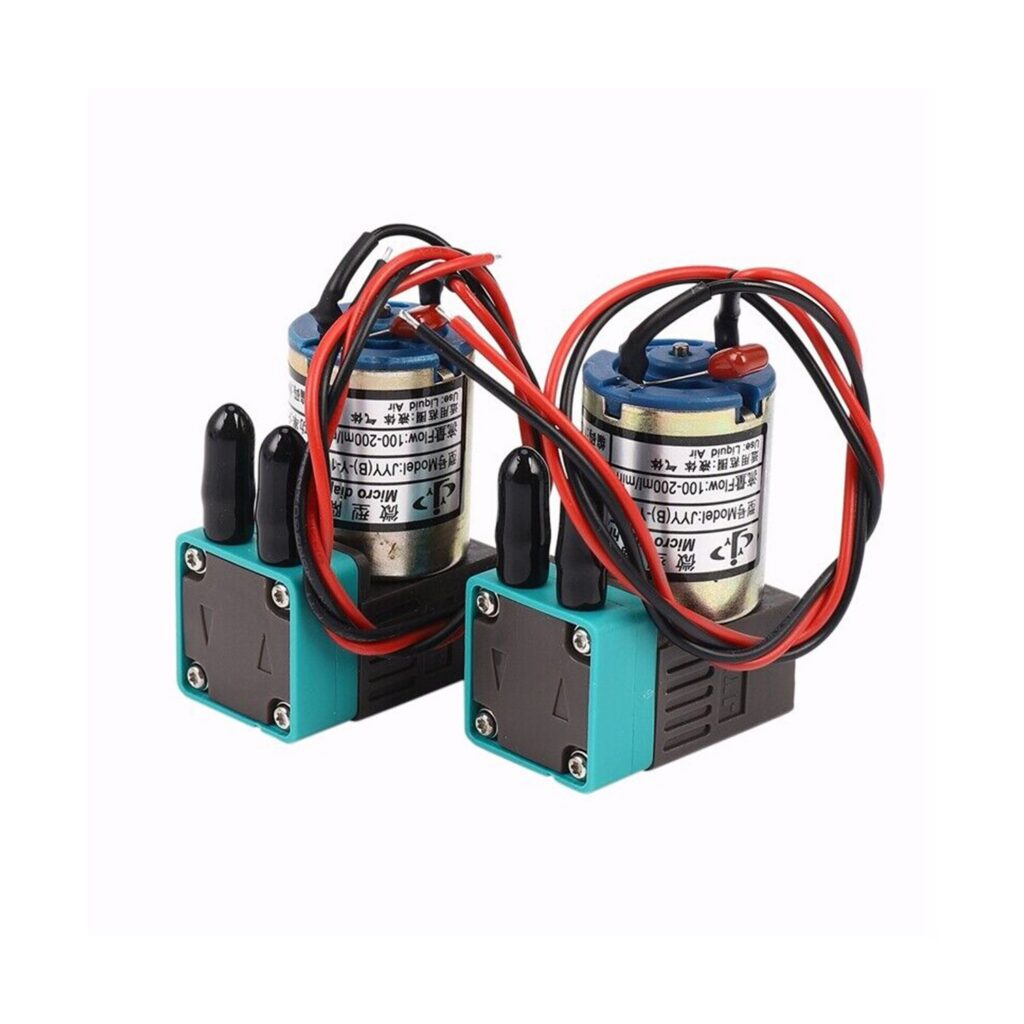

- Product Name: JYY Small Ink Pump
- Model: JYY(B)-Y-10-I
- Voltage: 24V DC
- Power: 3W±5%
- Ink Type: Solvent Ink/Eco-Solvent Ink
- Use: Liquid, Air
- Flow: 100-200 ml/min
- Suitable For: Flora/Allwin/Witcolor/Infiniti/Phaeton/Crystaljet/Gongzheng/JHF . etc Brand printer use
1. The JYY ink pump is a special ink supply device operated by a pump. When the printing speed is high (such as with a rotary printing press) and the ink consumption is large, a pump is needed to draw the ink from the container and supply it to the ink supply system. The basic function of the ink pump is to keep the ink at a certain height in the ink fountain and stir the ink to make its viscosity and fluidity meet the printing requirements.
2. Corrosion-resistant materials
Adopt new corrosion-resistant engineering plastics and rubber materials with oil resistance, acid resistance, alkali resistance, heat resistance, corrosion resistance, and other properties.
3. Precision manufacturing
The pump body is separated from the motor, and the working medium (liquid) does not contact the metal parts from inlet to outlet; there is no mechanical seal, low voltage safety, and quietness.
Note:
Due to the continuous use of the inkjet printer pump, it will wear and age, resulting in a decrease in the working performance of the pump and affecting the printing quality. Therefore, it is very necessary to maintain and replace the ink pump regularly.
Replacement cycle: It is recommended to replace it every three months
JYY Ink Pump 100-200 ml/min Specifications
| Model | JYY(B)-Y-10-1 |
| Ink Type | Solvent & Eco ink |
| Voltage | 24V |
| Power | 3W±5% |
| Flow | 100-200 ml/min |
| Weight | 63g |
| Use | Liquid & air |
| Ink Tube | ID 4mm, OD 6mm |
| JYY Ink Pump | ||||||
| Product Name | Model | Voltage | Power | Flow | Ink Type | Weight |
| JYY small ink pump | JYY (B)-Y-10-I | 24V | 3W | 100-200 ml/min | Solvent/Eco-solvent ink | 63g |
| JYY big ink pump | JYY (B)-Y-30-I | 24V | 6.5W | 300-400 ml/min | Solvent/Eco-solvent ink | 146g |
| JYY small UV ink pump | JYY*PUA-10 | 24V | 3W | 100-200 ml/min | Solvent/Eco-solvent/UV ink | 63g |
| JYY big UV ink pump | JYY*PUA-30 | 24V | 6.5W | 300-400 ml/min | Solvent/Eco-solvent/UV ink | 146g |
| JYY Air Pump | ||||||
| Product Name | Model | Voltage | Power | Positive Pressure | Negative Pressure | Weight |
| JYY air pump | JYY (B)-Q-30-I | 24V | 7W | 80-90 kPa | 65-70 kPa | 146g |
