Basic Information:
- Brand: Epson
- Original or Not: Original
- New or Used: Brand New
- Manufacturer part number: FA09121
Product Details:

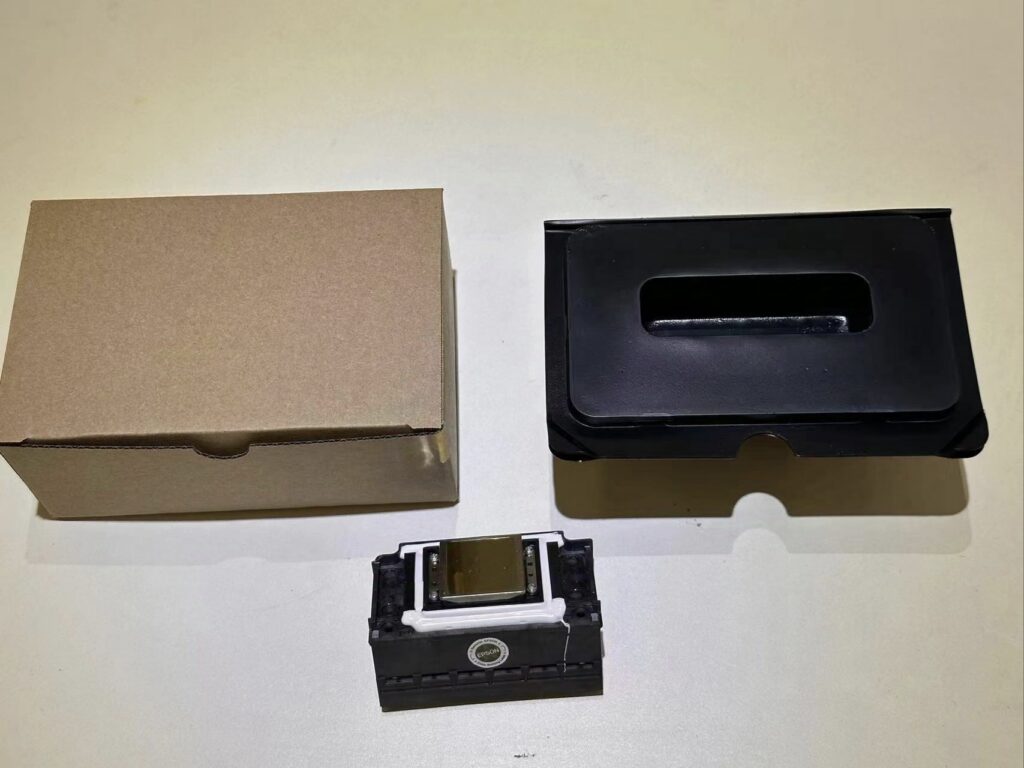

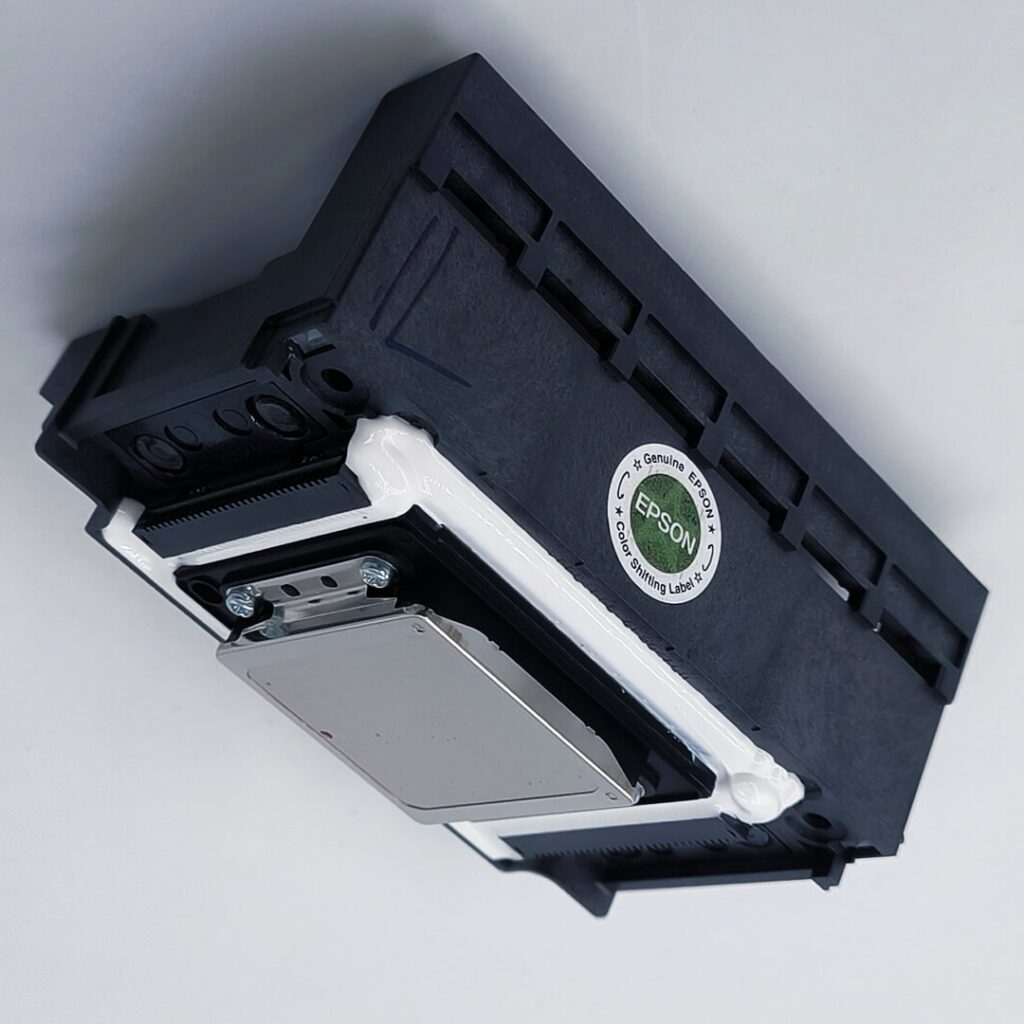

This is the original Epson head (part number F1080-A1 / FA09121 / FA09xxx). Designed with six ink channels—CMYK, light cyan (LC), light magenta (LM)—it features 180 nozzles per CMYK color and 360 nozzles for LC and LM, totaling 1,080 nozzles. Epson XP600 print head offers native 360 dpi resolution per channel and supports grayscale printing with variable drop sizes from 1.5 to 21 picoliters. The XP600 print head is a popular choice for many DTF and UV DTF printers.
Epson XP600 Printhead Specifications:
| Technology | Micro-Piezo |
| Dimensions | 84.9 x 57.2 x 42.6 mm |
| Weight | 60 g |
| Number of nozzles | 1080 |
| Nozzle pitch/nozzle row | 1/180 inch |
| Nozzle rows | 6 rows |
| Max. number of colour inks | 6 colours (180 dpi/color) |
| Nozzle resolution | 180 npi/row, 360 npi/2 rows |
| Effective print width | 25.4 mm |
| Jetting Frequency | 46 kHz (single mode); 11.52 kHz (multimode) |
| Droplet volumes | 4.5, 9, 20, 40 pl (multimode) |
| Viscosity range | 3-5 mPa･s |
| Ink type | UV ink, eco-solvent ink, water-based ink, sublimation ink |
Alternative Name:
Epson XP600, Epson XP600 print head, Epson F1080 print head, Epson F1080-A1 print head, FA09050, DX11 printhead, Epson FA09050 printhead
