Basic Information:

• Brand: Epson
• Country of Origin: Japan
• Model: i3200(4) E1
• Width x Depth x Height: 1 x 59.4 x 35.6 mm
• Weight: 82 g
• Original or Not: Original
• New or Used: Brand New

*For more information about this print Head, you can send us an inquiry.

Product Details

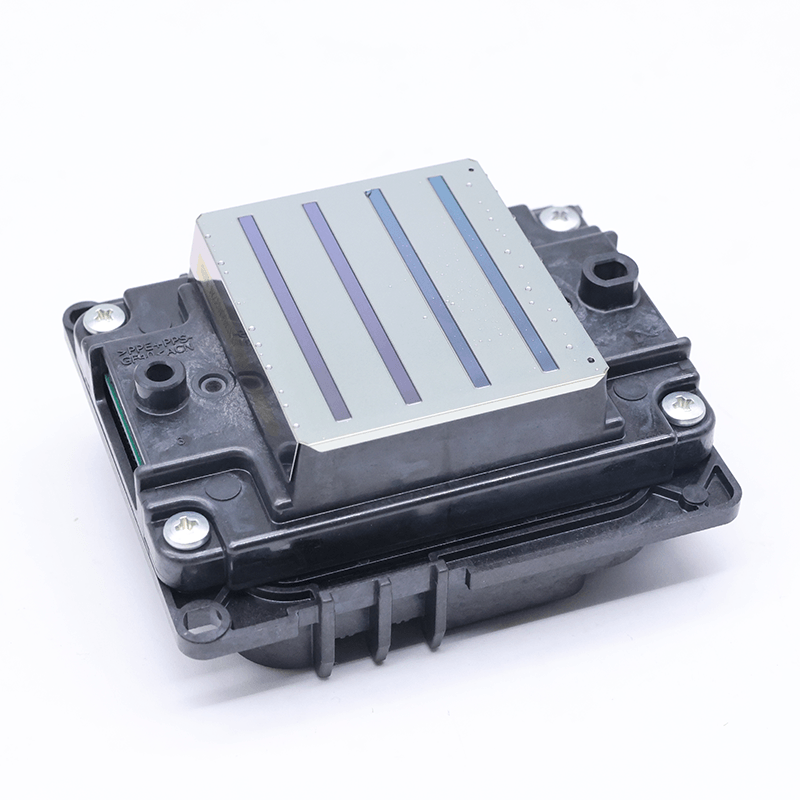

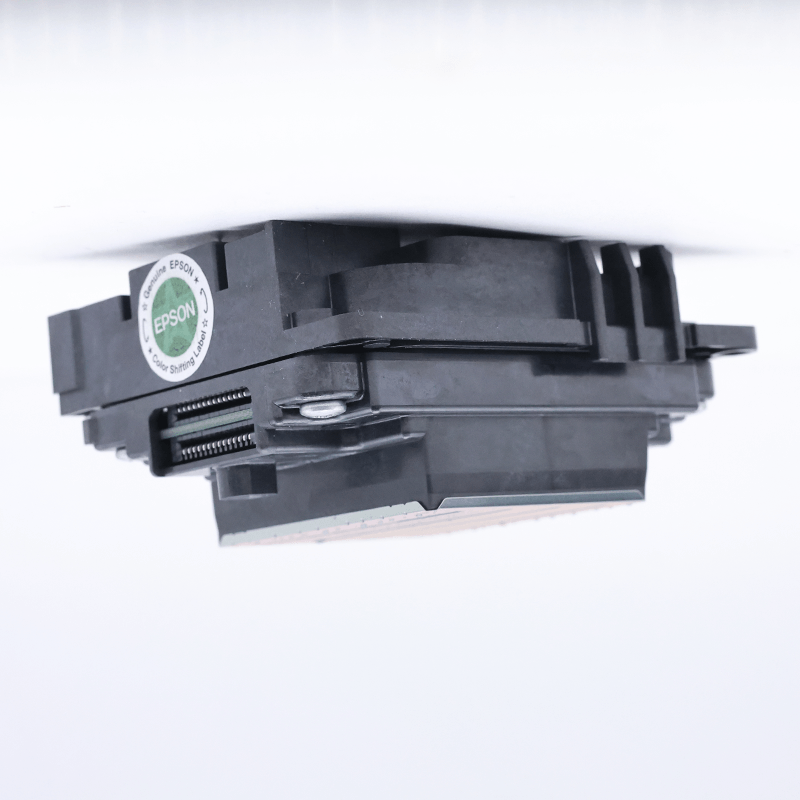

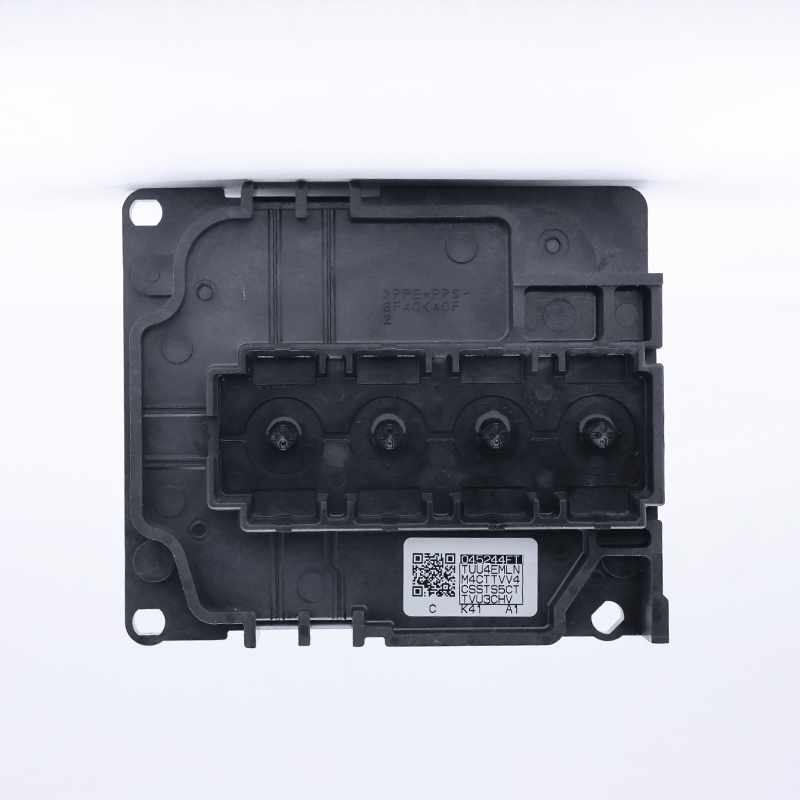

Epson i3200 E1 Printhead Description

The Epson i3200 printhead adopts the latest technology and is added with more control units, and can also receive technical support from Epson. There are different types of I3200 print heads, among which i3200 eco-solvent printheads can bring different printing experiences.

The Epson I3200-E1 printhead uses eco-solvent ink. It maintains the high precision of the images printed by the water-based printhead while overcoming the harshness of the water-based ink on the substrate and the resulting images that cannot be used outdoors. For users who print outdoor advertisements, this printhead has the printing accuracy of water-based printheads and can be used outdoors.

Epson i3200 E1 Printhead Specification

Type		PrecisionCore MicroTFP printhead
Number of nozzle		3200
Nozzle pitch/nozzle row		1/300 inch
Nozzle rows		8 rows
Nozzle Resolution		300 npi /row 600 npi/2 rows
Max. number of colour inks		4 colours
Effective print width		33.8 mm (1.33 inches)
WidthxDepthxHeight		69.1x 59.4 x 35.6 mm
Weight		82 g
Droplet ejection performance	Binary	6 pl at 43.2 kHz
	3 levels grey scale	6.3, 12.3 pl at 21.6 kHz
	4 levels grey scale	3.8, 5.5, 8.7 pl at 21.6 kHz
Viscosity range		3-4 mPa･s
Ink type		Eco Solvent

Epson i3200 E1 Printhead Applications

1. Advertising Graphics—Output on photo paper, PP adhesive vinyl, backlit film, glossy paper, and other advertising materials.
2. Outdoor Advertising—Uses solvent-based ink with excellent weather resistance, suitable for outdoor displays.
3. Commercial Label Printing—Roll-to-roll label printing for product packaging and commercial labeling applications.
4. Soft Packaging Printing—Compatible with solvent-based materials such as PVC film, PET film, and transparent film.
