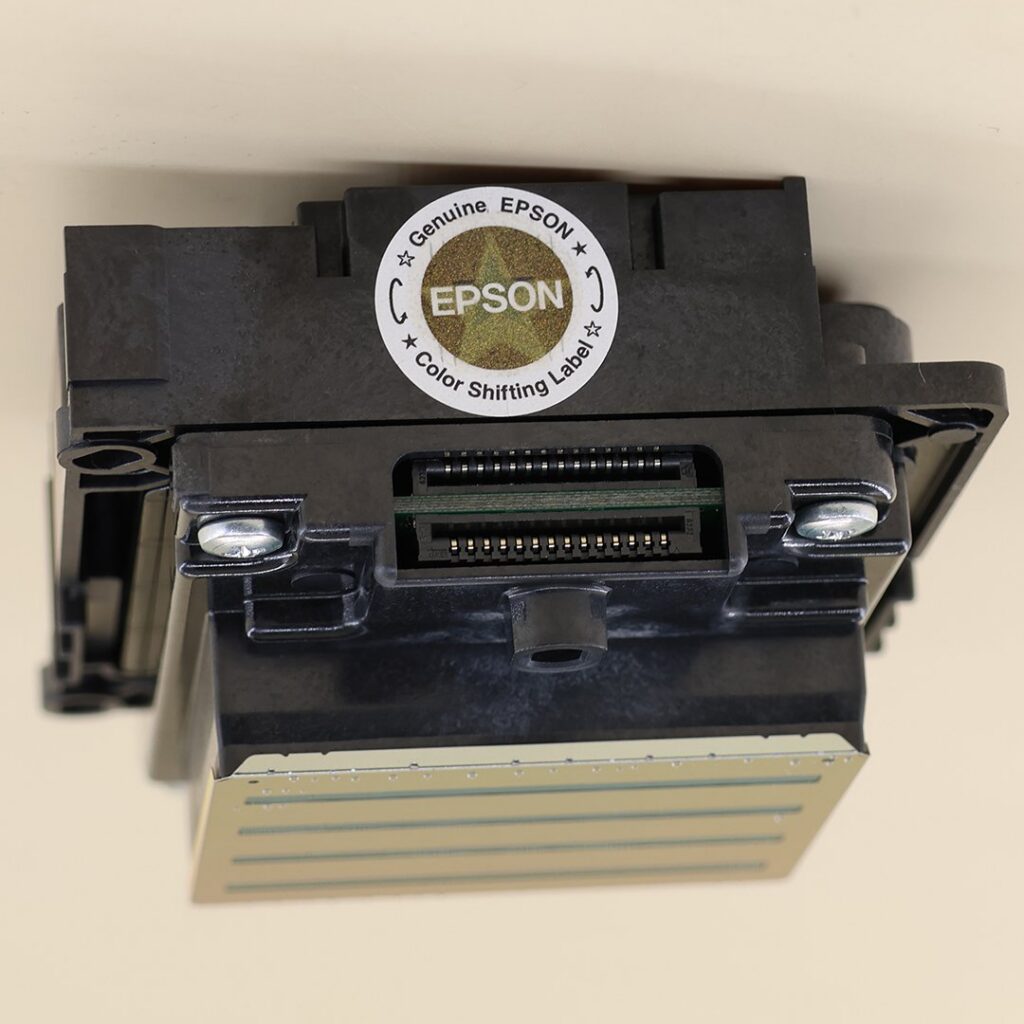

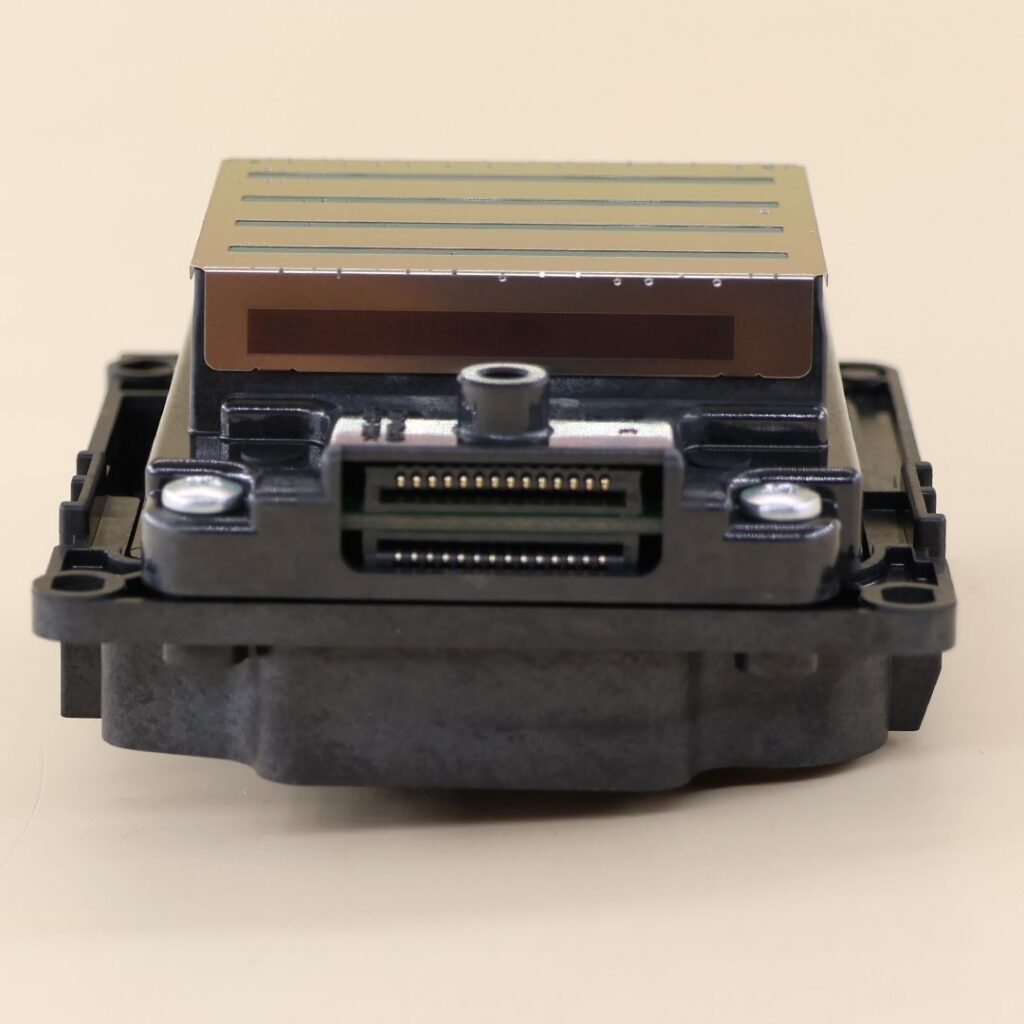

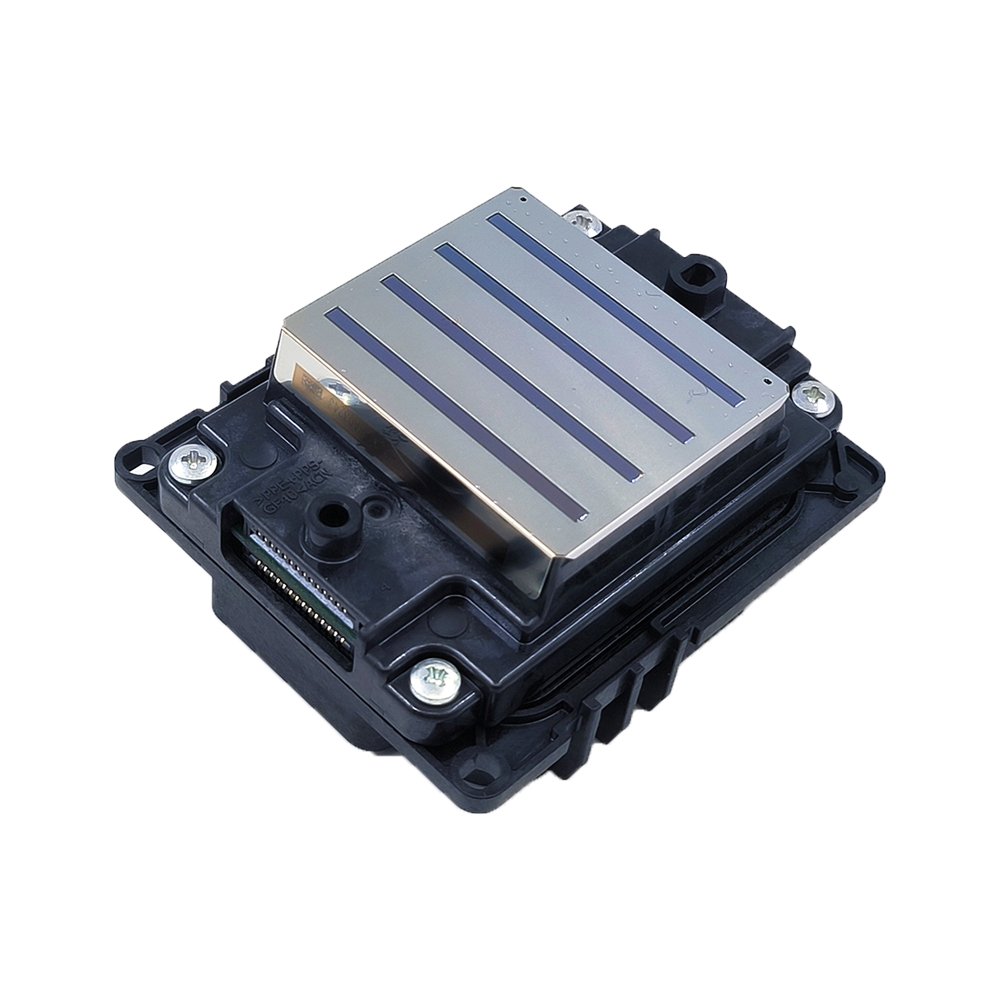

Epson I3200(4) A1 print head is for water based ink printer, dye sublimation ink printer, DTF printer, DTG printer use
Basic Information:
- Country of Origin: Japan
- Model: i3200 A1
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight: 82g
- Original or Not: Original
- New or Used: Brand New

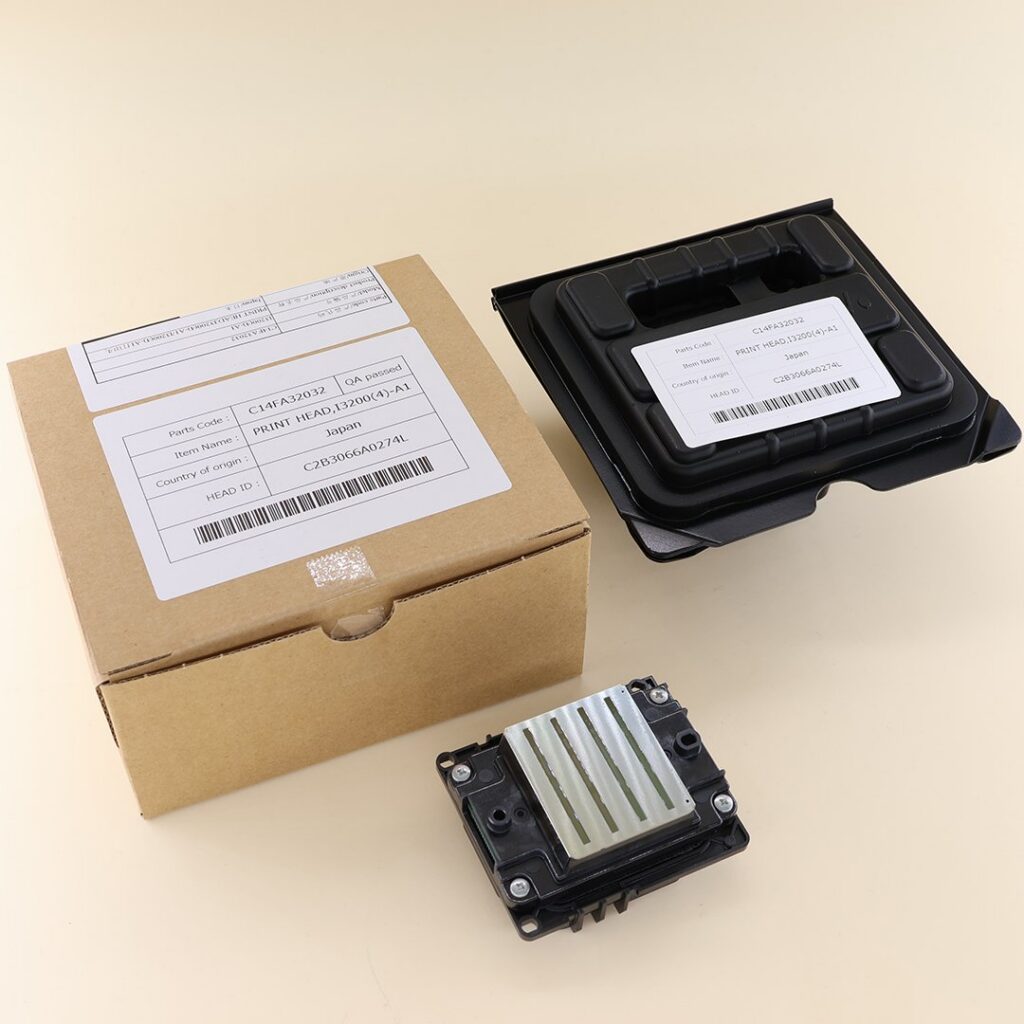

- STS Product Number(Parts Code): C14FA32032
Epson i3200 A1 Printhead Specifications:
| Type | PrecisionCore MicroTFP printhead | |
| Number of nozzles | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi/row 600 npi/2 rows | |
| Max. number of color inks | 4 colours | |
| Effective print width | 33.8 mm (1.33 inches) | |
| Width x Depth x Height | 69.1 x 59.4 x 35.6 mm | |
| Weight | 82 g | |
| Droplet ejection performance | Binary | 6 pl at 43.2 kHz |
| 3 levels grey scale | 6.3, 12.3 pl at 21.6 kHz | |
| 4 levels grey scale | 3.8, 6.1, 9.4 pl at 21.6 kHz | |
| Viscosity range | 3-4 mPa･s | |
| Ink type | Water-based inks (such as sublimation, pigments, and dyes) | |
Note:
Epson i3200 A1 print head total have two type for option:
- Epson I3200(4) -A1 PRINT HEAD
- EPSON I3200(8)-A1HD PRINT HEAD

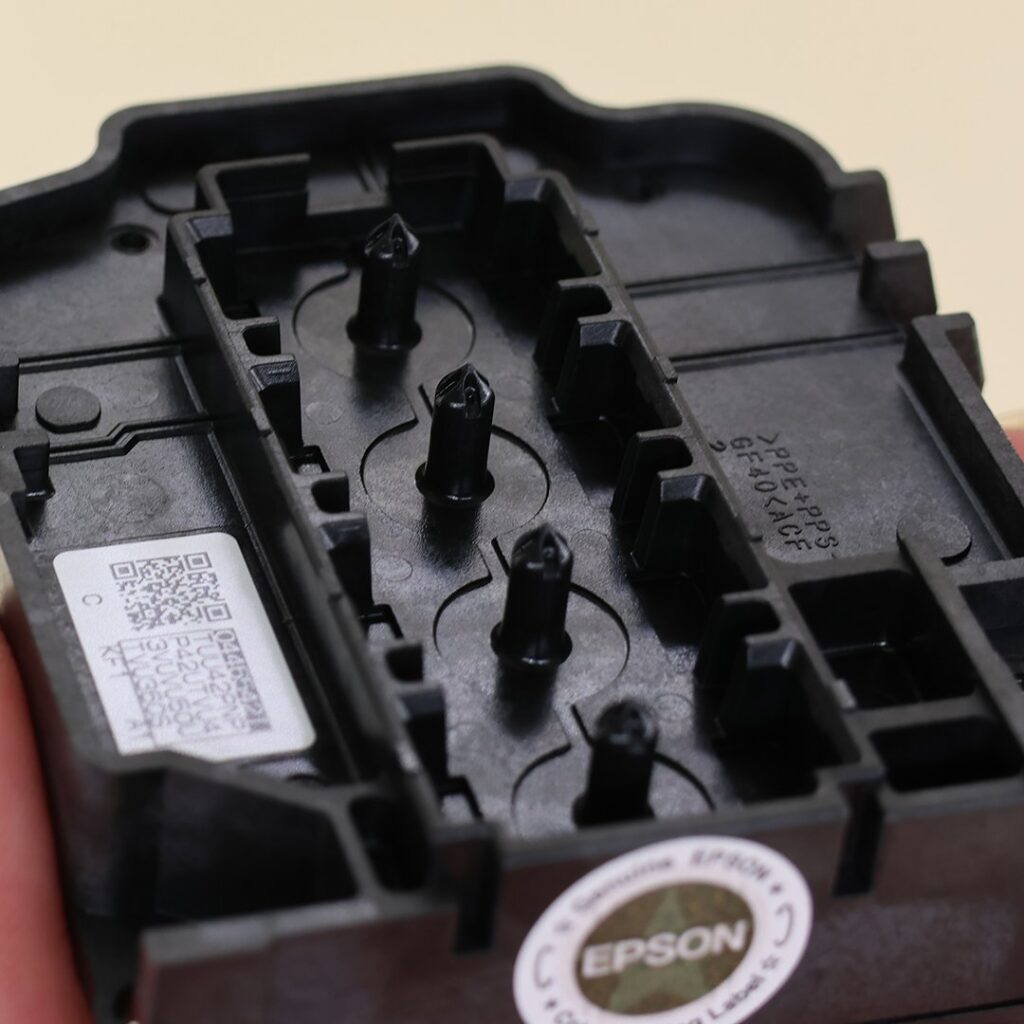

The Epson I3200-A1 and I3200-A1 HD print head share the same structure, both featuring 8 rows of 400 nozzles, but they are not interchangeable. The I3200-A1 supports 4 colors with 4 manifold inputs, each color using 2 nozzle rows. The I3200-A1 HD supports 8 colors with 8 inputs, each color using 1 nozzle row.
