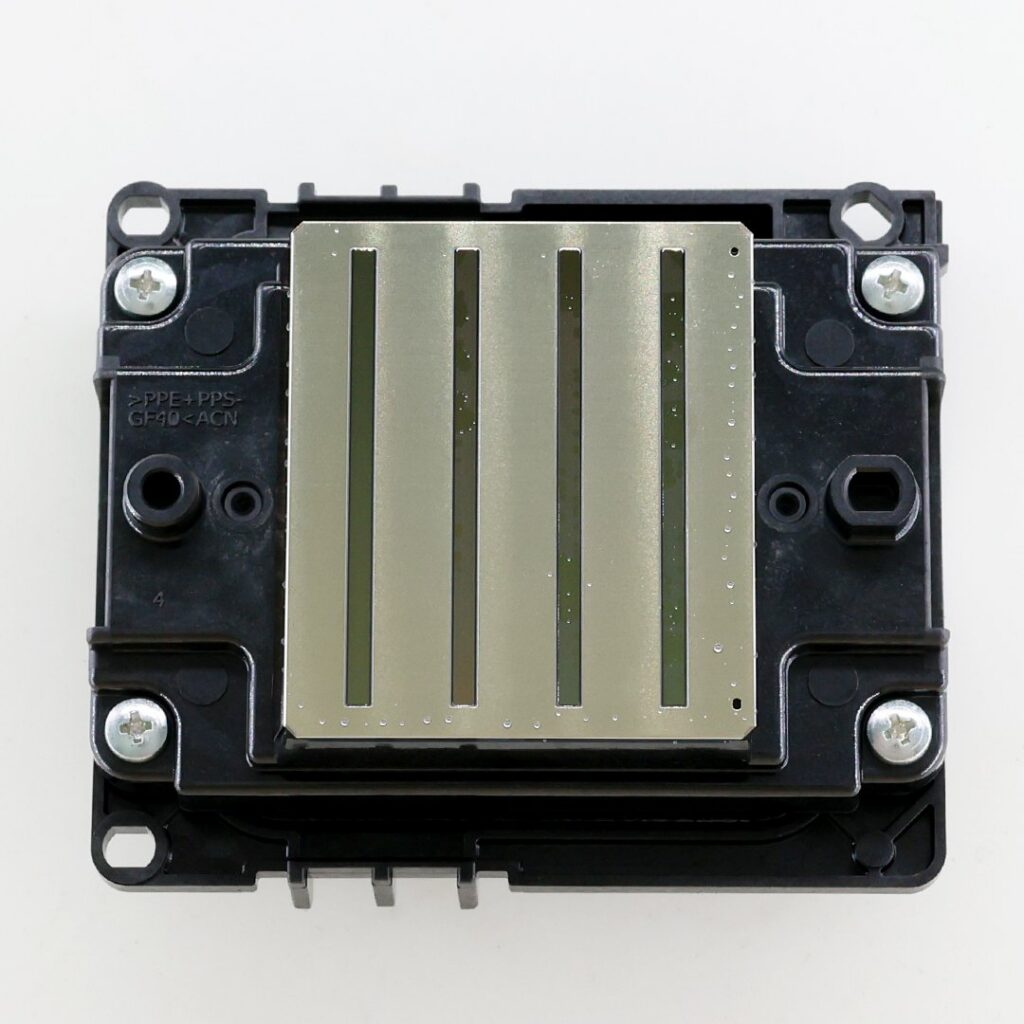

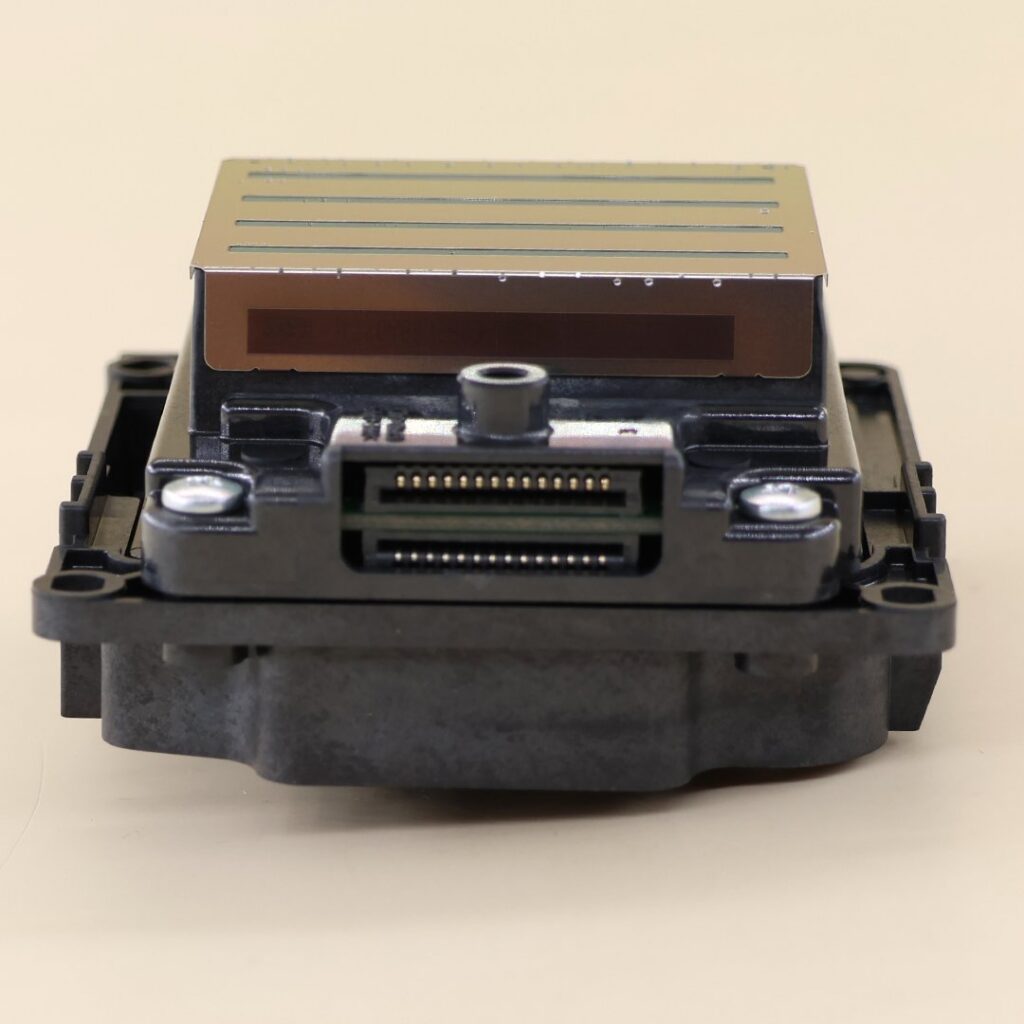

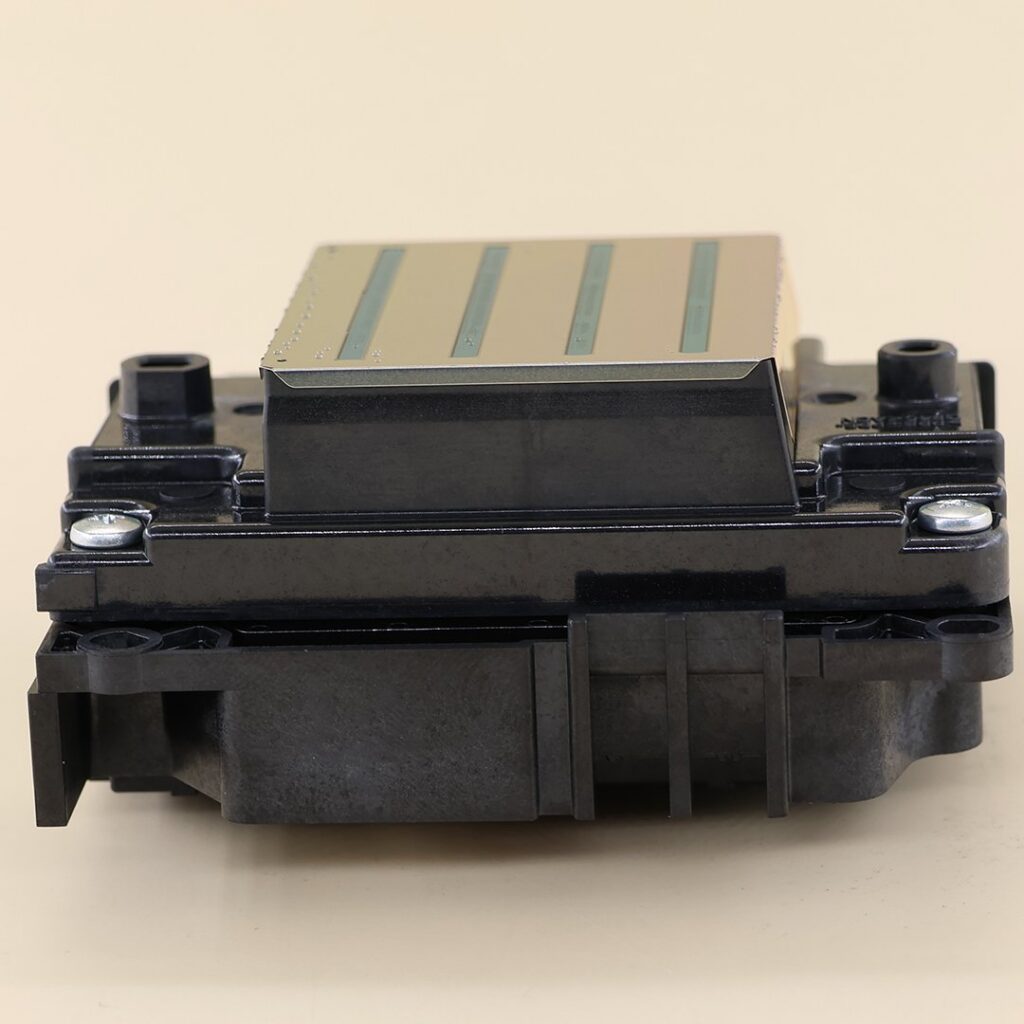

Epson i3200 (4) -U1 PRINT HEAD is for UV printer use
Basic Information:
Brand: Epson
Country of Origin: Japan
Model: Epson i3200 (4) U1 PRINT HEAD
Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
Weight: 82g
Original or Not: Original
New or Used: Brand New
Product Details:
The Epson I3200-U1 UV is an economical 1.33-inch wide MEMS printhead series that offers high productivity and exceptional image quality with a high-density resolution of 600 dpi. This printhead is suitable for UV inks and comes unlocked.
Why are more and more small UV printers choosing Epson i3200 U1 printheads? First of all, the price of small UV printers is usually relatively low. Choosing the i3200 printhead is the most cost-effective and cheap. Compared with Konica, Ricoh, and Kyocera printheads, it is much cheaper; secondly, it has high precision, 8 rows of 3200 nozzles. , 2400dpi, ultra-high precision, delicate and full-color reproduction, reaching photo-level image quality; In addition, it is fast; Finally, industrial-grade lifespan, after hundreds of billions of aging experiments in Epson laboratories, the theoretical lifespan can reach 2 years.
Epson i3200 U1 Printhead Specifications
| Type | PrecisionCore MicroTFP printhead | |
| Number of nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Effective print width | 33.8 mm (1.33 inches) | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Weight | 82 g | |
| Droplet ejection performance | Binary | 5 pl at 43.2 kHz |
| 3 levels grey scale | 6, 12.5 pl at 21.6 kHz | |
| 4 levels grey scale | 3.8, 6.2, 9.3 pl at 21.6 kHz | |
| Viscosity range | 5-7 mPa･s | |
| Ink type | UV | |
Epson i3200 U1 Print head Applications:
1. UV Flatbed Printers—Used for printing on acrylic, metal, wood, glass, leather, and other rigid or flexible materials.
2. UV Roll-to-Roll Printers—Suitable for printing on soft films, backlit films, PP adhesive vinyl, car wraps, and other advertising materials.
3. UV DTF Printing—Prints on PET film for transfer to materials such as T-shirts, leather, mugs, and other customized products.
4. Label Printing—Ideal for high-precision packaging applications such as transparent labels, gold/silver foil labels, and plastic labels.
